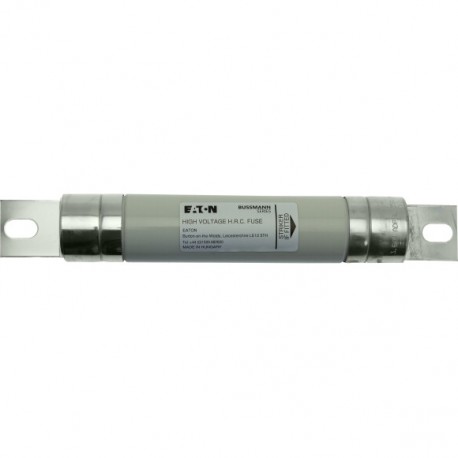

View larger
Images are for illustrative purposes only. Please refer to data sheet for details
36KV 16A 1162 36ADINA16 NZM4-XTVDKL EATON ELECTRIC Air fuse-link, medium voltage, 10 A, AC 36 kV, 50.8 x 565..
36KV 16A 1162
36ADINA16
NZM4-XTVDKL
EATON - MOELLER
3 Pcs.
Air fuse-link, medium voltage, 10 A, AC 36 kV, 50.8 x 565mm, back-up, BS, with striker, no tags
36KV 16AMP 2" AIR FUSE
36ADINA16 - Air fuse-link, medium voltage, 16 A, AC 36 kV, 50.8 x 565mm, back-up, BS
Fuse, Air fuse-link, medium voltage, 16 A, AC 36 kV, 50.8 x 565mm, back-up, BS, cylindrical, BS 2692-1, Breaking Capacity 16 kA, Optional accessories, Supplied with
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Air fuse-link, medium voltage, 16 A, AC 36 kV, 50.8 x 565mm, back-up, BS
Fuse, Air fuse-link, medium voltage, 16 A, AC 36 kV, 50.8 x 565mm, back-up, BS, cylindrical, BS 2692-1, Breaking Capacity 16 kA
Delivery program
Product range
Fuse
Basic function
Air fuse-link
Field of application
medium voltage
Rated current [I]
16 A
Rated voltage
AC 36 kV
Size
50.8 x 565mm
Utilization category
back-up
Breaking Capacity
16 kA
Standard/Approval
BS
Shape
cylindrical
Standards/Regulations
BS 2692-1
Technical data ETIM 7.0
Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
16 A
Rated voltage
36 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
16 kA
Utilization category
Other
Application
Primary side transformer protection
Length
565 mm
Diameter
51 mm
Performance category according to IEC 60282-1
Back-up
With striker
No
Standard
British Standard
Release characteristic
Other
Installation technique
Air
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 16 A |
| Rated voltage (EF000228) | 36 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Breaking capacity (EF005617) | 16 kA |
| Utilization category according to IEC 60269 (EF002572) | Other |
| Application (EF000041) | Primary side transformer protection |
| Length (EF001438) | 567 mm |
| Diameter (EF000551) | 51 mm |
| Performance category according to IEC 60282-1 (EF012539) | Back-up |
| With striker (EF008175) | No |
| Standard (EF009322) | British Standard |
| Release characteristic (EF000889) | Other |
| Installation technique (EF001474) | Air |
