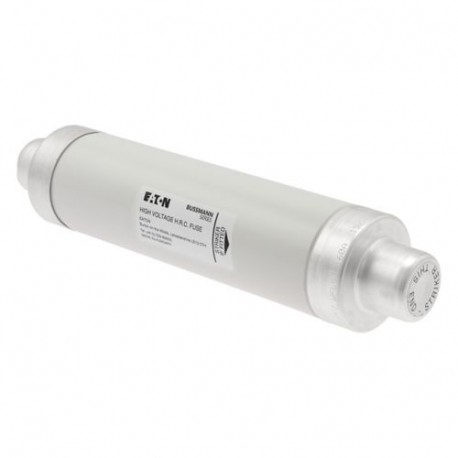

EATON - MOELLER 3.6WFLSJ160 3.6WFLSJ160 3-6WFLSJ160 EATON ELECTRIC Motor fuse-link, medium voltage, 160 A, AC 3.6 kV, DIN 43625 3", 76 x.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3.6WFLSJ160 3-6WFLSJ160 EATON ELECTRIC Motor fuse-link, medium voltage, 160 A, AC 3.6 kV, DIN 43625 3", 76 x..

3.6WFLSJ160

36WFLSJ160

3-6WFLSJ160

EATON - MOELLER

3 Pcs.

3.6KV 160Amp 3" 'J' Motorstart Fuse 60 A, 3.6 kV, 76 x 292mm Motor Fuse Link 3.6WFLSJ160 - Motor fuse-link, medium voltage, 160 A, AC 3.6 kV, DIN 43625 3", 76 x 292 mm, back-up, DIN, with striker Fuse, Motor fuse-link, medium voltage, 160 A, AC 3.6 kV, DIN 43625 3z, 76 x 292 mm, back-up, DIN, with striker, cylindrical, motor protection, DIN 43625, VDE 0670-4, IEC 60282-1, Breaking Capacity 50 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Motor fuse-link, medium voltage engineered by Eaton Moeller protects industrial motor systems against destructive overcurrent conditions. These components ensure swift interruption of fault currents to maintain operational continuity in production environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 160 A
  • Rated voltage (EF000228): 3.6 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 0.05 kA
  • Application (EF000041): Motor protection
  • Length (EF001438): 292 mm
  • Diameter (EF000551): 76 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): true
  • Standard (EF009322): DIN
  • Installation technique (EF001474): Air

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage motor fuse
Catalog Number
3.6WFLSJ160
EAN
5027590475341
UPC
051712834797
Product Length/Depth
292 mm
Product Height
76 mm
Product Width
76 mm
Product Weight
3160 g
Compliances
VDE 0670-4
DIN 43625
Certifications
IEC60282-1

Product specifications

Used with
A3354730 Nickel-plated copper fuse clip
Type
fuse
Application
Motor protection
Amperage Rating
160 A
Fuse indicator
Non Indicating
Fuse size
76 x 292 mm
Breaking capacity
50 A
Installation technique
Air
Performance Cat According To IEC 60282-1
Back-up
Product application
Motor protection
Rated frequency - max
50 Hz
Rated frequency - min
50 Hz
Release characteristic
Other
Standard
DIN
Utilization category
Other
Voltage type
AC
With striker
Yes
Class
Class back-up
Fuse shape
Cylindrical
Watt losses
61 W
Resistance
1.74 ohms
Fuse diameter
76 mm
Interrupt rating
50 kAIC
Construction size
76 x 292 mm
Packaging type
Standard
Voltage rating
3.6 kV
Fuse type
WFLSJ
