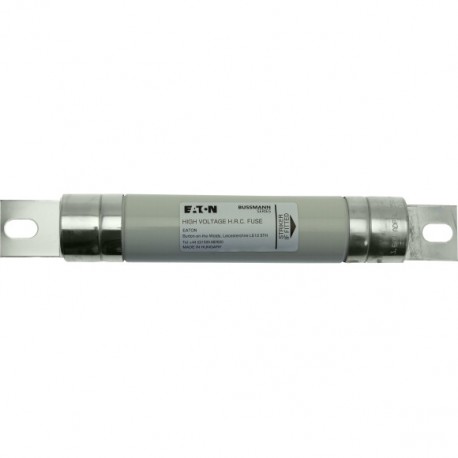

EATON - MOELLER 36KV 10AMP 2" AIR FUSE 36KV 10AMP 2" AIR FUSE 36ADIH3610 EATON ELECTRIC Air fuse-link, medium voltage, 10 A, AC 36 kV, 50.8 x 565mm.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

36KV 10AMP 2" AIR FUSE 36ADIH3610 EATON ELECTRIC Air fuse-link, medium voltage, 10 A, AC 36 kV, 50.8 x 565mm..

36KV 10AMP 2" AIR FUSE

36ADIH3610

36ADIH3610

EATON - MOELLER

1 Pcs.

Air fuse-link, medium voltage, 10 A, AC 36 kV, 50.8 x 565mm, back-up, BS, with striker, style 36 tag 36KV 10AMP 2" AIR FUSE 36KV 10AMP 2" AIR FUSE - Air fuse-link, medium voltage, 10 A, AC 36 kV, 16 kA, 2", 50.8 x 565mm, back-up, BS, with striker Fuse, Air fuse-link, medium voltage, 10 A, AC 36 kV, 50.8 x 565mm, back-up, BS, with striker, cylindrical, protection of primary side transformers, used in fuse switch combination units, fuse bases and fuse switches, BS 2692-1, Breaking Capacity 16 kA, Optional accessories, Supplied with

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller 36KV 10AMP 2" AIR FUSE is a high-voltage air fuse-link designed for heavy electrical transmission and distribution assets. This device isolates primary side transformer faults to protect substation infrastructure from sustained overcurrents.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 10 A
  • Rated voltage (EF000228): 36 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 16 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 565 mm
  • Diameter (EF000551): 51 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Air

More info

▲
Air fuse-link, medium voltage, 10 A, AC 36 kV, 16 kA, 2", 50.8 x 565mm, back-up, BS, with striker
Fuse, Air fuse-link, medium voltage, 10 A, AC 36 kV, 50.8 x 565mm, back-up, BS, with striker, cylindrical, protection of primary side transformers, used in fuse switch combination units, fuse bases and fuse switches, BS 2692-1, Breaking Capacity 16 kA

Delivery program

Product range
Fuse
Basic function
Air fuse-link
Field of application
medium voltage
Rated current [I]
10 A
Rated voltage
AC 36 kV
Construction size
2"
Size
50.8 x 565mm
Utilization category
back-up
Status indicator
with striker
Breaking Capacity
16 kA
usable for size/applications
protection of primary side transformers
used in fuse switch combination units, fuse bases and fuse switches
Standard/Approval
BS
Shape
cylindrical
Standards/Regulations
BS 2692-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
10 A
Rated voltage
36 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
16 kA
Utilization category
Other
Application
Primary side transformer protection
Length
565 mm
Diameter
51 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
British Standard
Release characteristic
Other
Installation technique
Air
