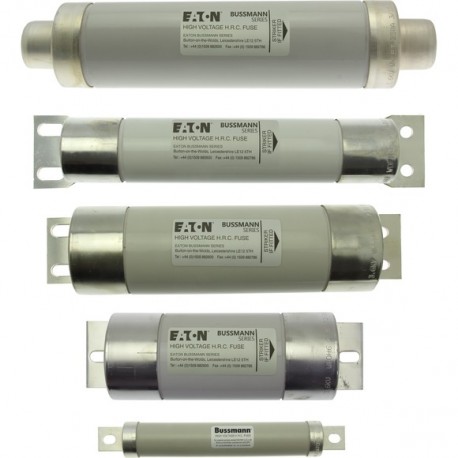

EATON - MOELLER 3.6KV 10Amp 2" '6' Air Fuse 3.6KV 10Amp 2" '6' Air Fuse 3.6ADOH610 3-6ADOH610 EATON ELECTRIC 3.6KV 10Amp 2" '6' Air Fuse View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3.6KV 10Amp 2" '6' Air Fuse 3.6ADOH610 3-6ADOH610 EATON ELECTRIC 3.6KV 10Amp 2" '6' Air Fuse

3.6KV 10Amp 2" '6' Air Fuse

3.6ADOH610

3-6ADOH610

EATON - MOELLER

3 Pcs.

3.6KV 10Amp 2" '6' Air Fuse 3.6KV 10Amp 2" '6' Air Fuse - Fuse-link, medium voltage, 10 A, AC 3.6 kV, 51 x 192 mm, back-up, BS, with striker Air fuse-link, medium voltage, 10 A, AC 3.6 kV, 51 x 192 mm, back-up, BS, with striker

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for medium voltage installations, this Eaton Moeller 3.6KV 10Amp 2'6' Air Fuse acts as an air-insulated fuse-link for electrical safety management. Utility and industrial equipment rely on these links to isolate faults on transformer inputs, protecting the greater network from damage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 10 A
  • Rated voltage (EF000228): 3.6 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 40 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 262 mm
  • Diameter (EF000551): 51 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Air

More info

▲
Fuse-link, medium voltage, 10 A, AC 3.6 kV, 51 x 192 mm, back-up, BS, with striker
Fuse, Air fuse-link, medium voltage, 10 A, AC 3.6 kV, 51 x 192 mm, back-up, BS, with striker, cylindrical with offset bolted tags, protection of primary side transformers, BS2692-1

Delivery program

Product range
Fuse
Basic function
Air fuse-link
Field of application
medium voltage
Rated current [I]
10 A
Rated voltage
AC 3.6 kV
Size
51 x 192 mm
Utilization category
back-up
Status indicator
with striker
usable for size/applications
protection of primary side transformers
Standard/Approval
BS
Shape
cylindrical with offset bolted tags
Standards/Regulations
BS2692-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
10 A
Rated voltage
3.6 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
60 kA
Utilization category
Other
Application
Primary side transformer protection
Length
254 mm
Diameter
51 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
British Standard
Release characteristic
Other
Installation technique
Air

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
