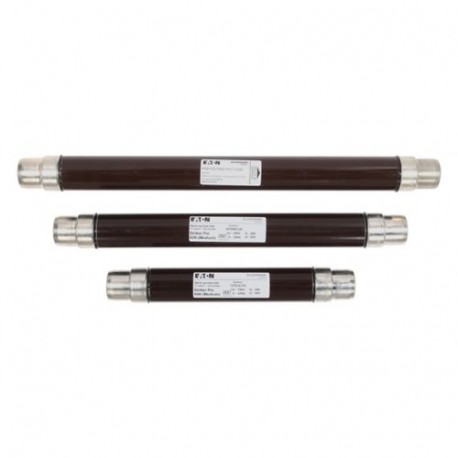

EATON - MOELLER 3.6KV 10Amp 2" 'J' DIN Fuse 3.6KV 10Amp 2" 'J' DIN Fuse 3.6ADOSJ10 3-6ADOSJ10 EATON ELECTRIC Fuse-link, LV, 10A, AC 690 V, NH000, gL/gG,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3.6KV 10Amp 2" 'J' DIN Fuse 3.6ADOSJ10 3-6ADOSJ10 EATON ELECTRIC Fuse-link, LV, 10A, AC 690 V, NH000, gL/gG,..

3.6KV 10Amp 2" 'J' DIN Fuse

36ADOSJ10

3-6ADOSJ10

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 10A, AC 690 V, NH000, gL/gG, IEC, dual indicator, insulated gripping lugs 3.6KV 10Amp 2" 'J' DIN Fuse 3.6KV 10Amp 2" 'J' DIN Fuse - Fuse-link, medium voltage, 10 A, AC 3.6 kV, 40 kA, 2", 51 x 192 mm, back-up, DIN, with striker Fuse, Fuse-link, medium voltage, 10 A, AC 3.6 kV, 2z, 51 x 192 mm, Back-up, DIN, with striker, transformer protection, indoor use, DIN 43625, VDE 0670 Part 4, IEC 60282-1, Breaking Capacity 40 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Fuse-link, LV units such as the Eaton Moeller 3.6KV 10Amp 2" 'J' DIN Fuse provide dependable circuit isolation across industrial electrical installations. Protective fuse-links interrupt current flow during overload conditions to secure downstream assets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 10 A
  • Rated voltage (EF000228): 3.6 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 40 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 192 mm
  • Diameter (EF000551): 51 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): DIN
  • Installation technique (EF001474): Air

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage DIN fuse
Catalog Number
3.6ADOSJ10
EAN
5027590473699
UPC
051712525428
Product Length/Depth
192 mm
Product Height
51 mm
Product Width
51 mm
Product Weight
1100 g
Compliances
DIN 43625
VDE 0670-4
IEC 60282-1
Certifications
IEC60282-1

Electrical data

Amperage Rating
10 A
Voltage rating
3.6 kV
Voltage type
AC
Breaking capacity
40 kA
Performance Cat According To IEC 60282-1
Back-up
Rated frequency - min
50 Hz
Class
Class back-up
Resistance
79.2 Ohms
Watt losses
79.2 W

Product specifications

Fuse indicator
With Striker
Construction size
51 x 192 mm
Standard
DIN
Standard
DIN
Mounting method
Clip-in

Compatible fuse clip

Used with
270303 Fuse clip
A3354710 Fuse clip

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
