View larger
Images are for illustrative purposes only. Please refer to data sheet for details

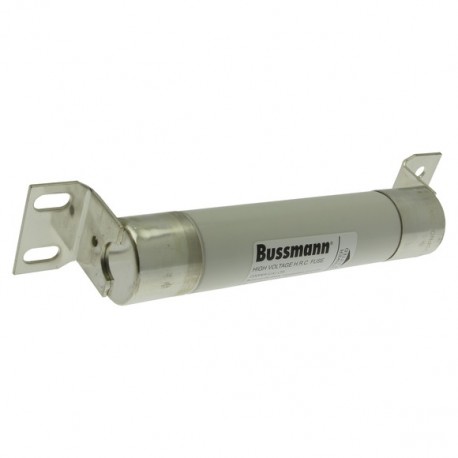

3.6KV 100A M/S 1210 3.6WDFNF100 3.6WDFNF100 3-6WDFNF100 EATON ELECTRIC Motor fuse-link, medium voltage, 100 ..
3.6KV 100A M/S 1210 3.6WDFNF100
36WDFNF100
3-6WDFNF100
EATON - MOELLER
3 Pcs.
Motor fuse-link, medium voltage, 100 A, AC 3.6 kV, 51 x 356 mm, back-up, BS
Motor cartridge fuse, MT, 100 A, AC 3.6 kV, 51 x 356 mm, back-up, BS
Fuse, Motor fuse-link, medium voltage, 100 A, AC 3.6 kV, 51 x 356 mm, back-up, BS, cylindrical with offset bolted tags, motor protection, BS2692-1, Breaking Capacity 50 kA
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Motor fuse-link, medium voltage, 100 A, AC 3.6 kV, 51 x 356 mm, back-up, BS
Fuse, Motor fuse-link, medium voltage, 100 A, AC 3.6 kV, 51 x 356 mm, back-up, BS, cylindrical with offset bolted tags, motor protection, BS2692-1, Breaking Capacity 50 kA
Delivery program
Product range
Fuse
Basic function
Motor fuse-link
Field of application
medium voltage
Rated current [I]
100 A
Rated voltage
AC 3.6 kV
Size
51 x 356 mm
Utilization category
back-up
Breaking Capacity
50 kA
usable for size/applications
motor protection
Standard/Approval
BS
Shape
cylindrical with offset bolted tags
Standards/Regulations
BS2692-1
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 100 A |
| Rated voltage (EF000228) | 3.6 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Breaking capacity (EF005617) | 0.05 kA |
| Utilization category according to IEC 60269 (EF002572) | Other |
| Length (EF001438) | 358 mm |
| Performance category according to IEC 60282-1 (EF012539) | Back-up |
| With striker (EF008175) | No |
| Standard (EF009322) | British Standard |
| Release characteristic (EF000889) | Other |
| Installation technique (EF001474) | Air |
