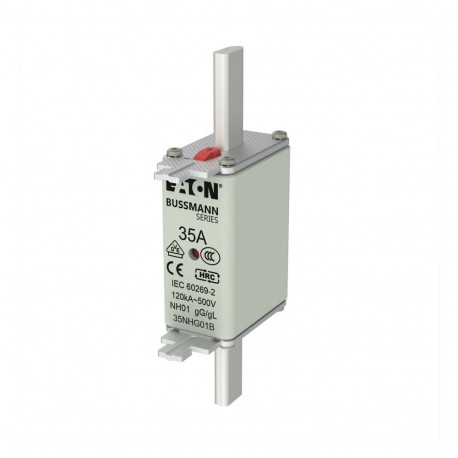

EATON - MOELLER NH FUSE 35A 500V GG/GL SIZE 01 NH FUSE 35A 500V GG/GL SIZE 01 35NHG01B EATON ELECTRIC Fuse-link, LV, 35 A, AC 500 V, NH01, gL/gG, IEC, dual.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 35A 500V GG/GL SIZE 01 35NHG01B EATON ELECTRIC Fuse-link, LV, 35 A, AC 500 V, NH01, gL/gG, IEC, dual..

NH FUSE 35A 500V GG/GL SIZE 01

35NHG01B

35NHG01B

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 35 A, AC 500 V, NH01, gL/gG, IEC, dual indicator, live gripping lugs NH FUSE 35A 500V GG/GL SIZE 01 Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 35A, 120 kAIC, Combination fuse status indicator, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
35NHG01B
EAN
5027590477895
UPC
051712625944
Product Length/Depth
135 mm
Product Height
57.8 mm
Product Width
29.55 mm
Product Weight
295 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
35 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH01
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
Microswitch 170H0235

ETIM for 35NHG01B Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH01
Voltage type (EF000187) AC
Rated current (EF000227) 35 A
Rated voltage AC (EF007682) 500 V
Utilization category according to IEC 60269 (EF002572) gG (cable protection/equipment protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) No
