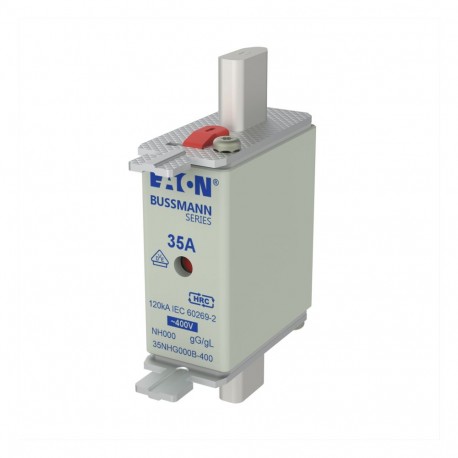

EATON - MOELLER NH FUSE 35A 400V GG/GL SIZE 000 NH FUSE 35A 400V GG/GL SIZE 000 35NHG000B-400 EATON ELECTRIC Fuse-link with blink application, D01, 10A, 400.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 35A 400V GG/GL SIZE 000 35NHG000B-400 EATON ELECTRIC Fuse-link with blink application, D01, 10A, 400..

NH FUSE 35A 400V GG/GL SIZE 000

35NHG000B400

35NHG000B-400

EATON - MOELLER

3 Pcs.

Fuse-link with blink application, D01, 10A, 400 V, gL/gG, set consists of 3 pcs. NH FUSE 35A 400V GG/GL SIZE 000 Fuse-link, LV, 35 A, AC 400 V, NH000, gL/gG, IEC, dual indicator, live gripping lugs Fuse, fuse-link, low voltage, 35 A, AC 400 V, NH000, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller NH fuse link provides dependable overcurrent protection for compact industrial control panels and secondary power distribution lines. Miniature low-voltage fuses ensure targeted fault isolation in automated machinery.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH000
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 35 A
  • Rated voltage AC (EF007682): 400 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No
  • Power loss at rated current (EF012389): 2.8 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
35NHG000B-400
EAN
5027590477826
Product Length/Depth
79 mm
Product Height
51 mm
Product Width
21 mm
Product Weight
131 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
35 A
Voltage rating
400 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH000
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
Microswitch 170H0236
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors
EBH Size 000 Horizontal fuse switch-disconnectors
