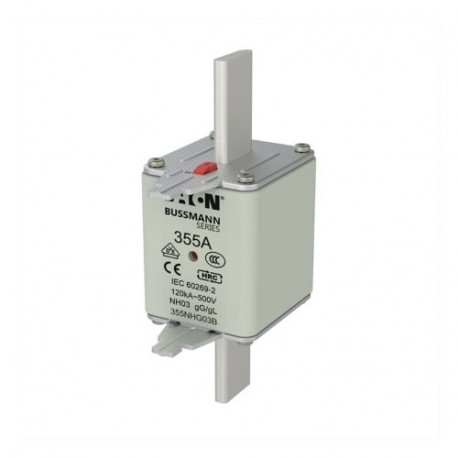

EATON - MOELLER NH FUSE 355A 500V GG/GL SIZE 03 NH FUSE 355A 500V GG/GL SIZE 03 355NHG03B EATON ELECTRIC Fuse-link, LV, 355 A, AC 500 V, NH03, gL/gG, IEC, d.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 355A 500V GG/GL SIZE 03 355NHG03B EATON ELECTRIC Fuse-link, LV, 355 A, AC 500 V, NH03, gL/gG, IEC, d..

NH FUSE 355A 500V GG/GL SIZE 03

355NHG03B

355NHG03B

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 355 A, AC 500 V, NH03, gL/gG, IEC, dual indicator, live gripping lugs NH FUSE 355A 500V GG/GL SIZE 03 Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 355A, 120 kAIC, Combination fuse status indicator, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A high-capacity Eaton Moeller NH FUSE 355A 500V GG/GL SIZE 03 355NHG03B EATON ELECTRIC Fuse-link, LV, 355 A, AC 500 V, NH03, gL/gG, IEC, d.. engineered for safeguarding heavy industrial electrical distribution infrastructure. This fuse element isolates fault currents effectively within commercial switchboards and large-scale manufacturing installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH03
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 355 A
  • Rated voltage AC (EF007682): 500 V
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
355NHG03B
EAN
5027590477406
UPC
051712626224
Product Length/Depth
150 mm
Product Height
71 mm
Product Width
54 mm
Product Weight
672 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
355 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH03
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
Microswitch BVL50

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
