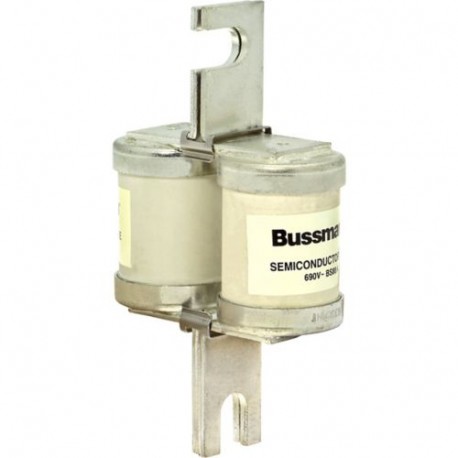

EATON - MOELLER 355A 690V THYRISTOR FUSE(1) 355A 690V THYRISTOR FUSE(1) 355CMMT EATON ELECTRIC Fuse-link, high speed, 350 A, AC 240 V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

355A 690V THYRISTOR FUSE(1) 355CMMT EATON ELECTRIC Fuse-link, high speed, 350 A, AC 240 V

355A 690V THYRISTOR FUSE(1)

355CMMT

355CMMT

EATON - MOELLER

1 Pcs.

Fuse-link, high speed, 350 A, AC 240 V 355A 690V THYRISTOR FUSE(1) Fuse-link, high speed, 355 A, AC 690 V, BS88, 83 x 136 mm, aR, BS Fuse, Fuse-link, high speed, 355 A, AC 690 V, BS88, 83 x 136 mm, aR, BS, centre-bolted tags (dual barrel), 110 mm fixing centres, traction, BS88-4, IEC 60269-4, Breaking Capacity 200 kA, Optional accessories, Supplied with

Automation > HRC fuse
Bussmann Series High speed fuses

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller 355A 690V THYRISTOR FUSE(1) is a high-speed fuse-link engineered to protect sensitive thyristor drives, rectifiers, and solid-state switching circuits from catastrophic fault currents. Fast-acting semiconductor fuses are essential in industrial automation setups to preserve delicate electronic switching modules. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of current: AC
  • Rated voltage AC: 690 V
  • Rated current: 355 A
  • Utilization category according to IEC 60269: aR (accompanied semiconductor protection)
  • Breaking capacity: 200 kA
  • Power loss at rated current: 54 W
  • Mounting holes: M10
  • Centre-to-centre distance of connections: 110 mm

More info

▲

General specifications

Product Name
Eaton Bussmann series high speed british standard fuse
Catalog Number
355CMMT
EAN
5027590044820
Product Length/Depth
136 mm
Product Height
38 mm
Product Width
83 mm
Product Weight
465 g
Compliances
CE

Electrical data

Amperage Rating
355 A
Voltage rating
690 V
Rated voltage AC
690 V
Class
Class aR
Pre arc (I2T)
8600
Clearing (I2T)
97000
Watt losses
54 W

Product specifications

Application
Semiconductor, DC Common bus, DC drives, power converters/rectifiers
Fuse indicator
None
