NH FUSE 315A 690V aM SIZE 2 315NHM2B-690 EATON ELECTRIC Fuse-link, low voltage, 100 A, AC 690 V, NH00, aM, I..

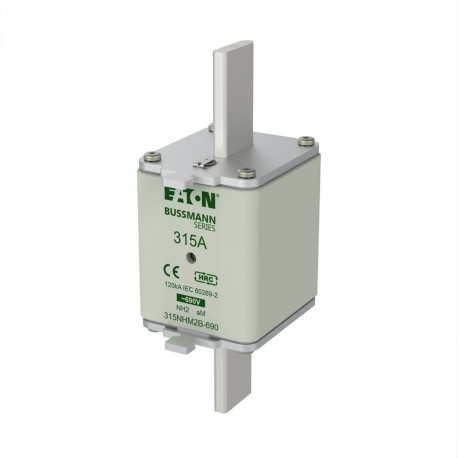

NH FUSE 315A 690V aM SIZE 2
315NHM2B690
315NHM2B-690
EATON - MOELLER
3 Pcs.
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured by Eaton Moeller, the NH FUSE 315A 690V aM SIZE 2 is a robust low-voltage fuse-link engineered to provide backup protection for motor control gear and switching devices in demanding industrial environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Fuse construction type according to IEC 60269 (EF015865): NH2
- Voltage type (EF000187): AC
- Rated current (EF000227): 315 A
- Rated voltage AC (EF007682): 690 V
- Rated switching capacity AC (EF017698): 120 kA
- Utilization category according to IEC 60269 (EF002572): aM (switchgear protection)
- Type of fuse status indicator (EF004473): Top fuse status indicator
- Insulated metal gripping lugs (IMGL) (EF012538): No
- Power loss at rated current (EF012389): 23 W
More info
▲General specifications
RoHS Compliant
IEC 60269-2
DIN 43620
Electrical data
Product specification
Accessories
TD2-D Tripe pole NH Fuse base
Microswitch 170H0235
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
