NH FUSE 315A 690V gG SIZE 3 315NHG3B-690 EATON ELECTRIC Fuse-link, LV, 100 A, AC 690V, NH1, gL/gG, IEC, dual..

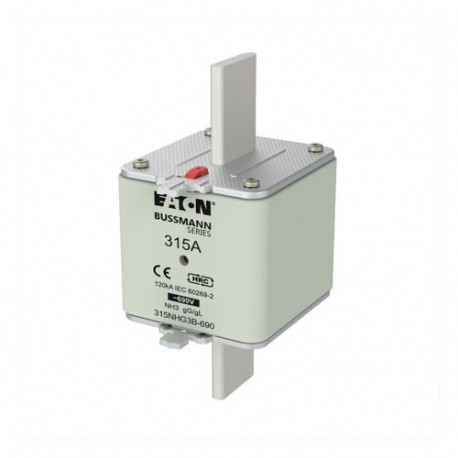

NH FUSE 315A 690V gG SIZE 3
315NHG3B690
315NHG3B-690
EATON - MOELLER
3 Pcs.
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Eaton Moeller NH FUSE 315A 690V gG SIZE 3 is an industrial low-voltage fuse-link engineered to interrupt excessive fault currents and safeguard electrical distribution networks. Fuse-links of this type are deployed in switchgear assemblies and power panels to provide reliable, time-delayed protection for cables and electrical equipment against sustained overloads and short circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Fuse construction type according to IEC 60269 (EF015865): NH3
- Voltage type (EF000187): AC
- Rated current (EF000227): 315 A
- Rated voltage AC (EF007682): 690 V
- Rated switching capacity AC (EF017698): 120 kA
- Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
- Type of fuse status indicator (EF004473): Combination fuse status indicator
- Insulated metal gripping lugs (IMGL) (EF012538): No
- Power loss at rated current (EF012389): 22 W
More info
▲General specifications
CE Marked
IEC 60269-2
DIN 43620
Electrical data
Product specification
Accessories
TD3-D Tripe pole NH Fuse base
Microswitch 170H0235
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
