View larger
Images are for illustrative purposes only. Please refer to data sheet for details

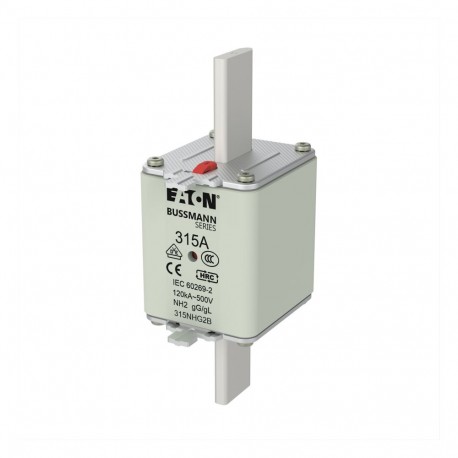

NH FUSE 315A 500V GG/GL SIZE 2 315NHG2B EATON ELECTRIC Fuse-link, LV, 315 A, AC 500 V, NH2, gL/gG, IEC, dual..
NH FUSE 315A 500V GG/GL SIZE 2
315NHG2B
315NHG2B
EATON - MOELLER
3 Pcs.
Fuse-link, LV, 315 A, AC 500 V, NH2, gL/gG, IEC, dual indicator, live gripping lugs
NH FUSE 315A 500V GG/GL SIZE 2
Fuse-link, low voltage, 315 A, AC 500 V, NH2, gL/gG, IEC, dual indicator
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
315NHG2B
EAN
5027590420587
UPC
051712626170
Product Length/Depth
150 mm
Product Height
71 mm
Product Width
54 mm
Product Weight
659 g
Compliances
CE Marked
RoHS Compliant
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620
IEC 60269-2
DIN 43620
Electrical data
Amperage Rating
315 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz
Product specification
Fuse size
NH2
Insulated metal gripping lugs (IMGL)
No
Accessories
Suitable for
SD2-D Single pole NH Fuse base
TD2-D Tripe pole NH Fuse base
Microswitch 170H0235
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
TD2-D Tripe pole NH Fuse base
Microswitch 170H0235
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
| Feature Name | Feature Value |
|---|---|
| Fuse construction type according to IEC 60269 (EF015865) | NH2 |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 315 A |
| Rated voltage AC (EF007682) | 500 V |
| Utilization category according to IEC 60269 (EF002572) | gG (cable protection/equipment protection) |
| Type of fuse status indicator (EF004473) | Combination fuse status indicator |
| Insulated metal gripping lugs (IMGL) (EF012538) | No |
