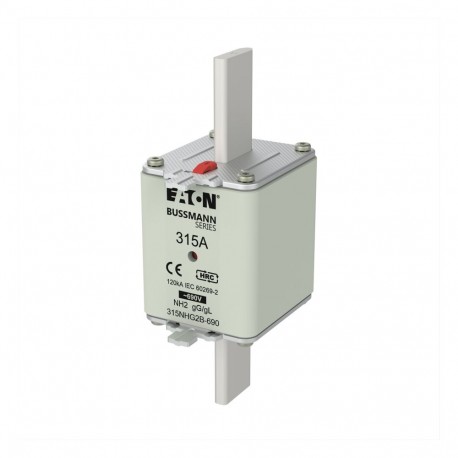

EATON - MOELLER NH FUSE 315A 690V gG SIZE 2 NH FUSE 315A 690V gG SIZE 2 315NHG2B-690 EATON ELECTRIC Fuse-link, LV, 100 A, AC 690V, NH1, gL/gG, IEC, dual.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 315A 690V gG SIZE 2 315NHG2B-690 EATON ELECTRIC Fuse-link, LV, 100 A, AC 690V, NH1, gL/gG, IEC, dual..

NH FUSE 315A 690V gG SIZE 2

315NHG2B690

315NHG2B-690

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 100 A, AC 690V, NH1, gL/gG, IEC, dual indicator, insulated gripping lugs NH FUSE 315A 690V gG SIZE 2 Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 690V, 315A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Electric Fuse-link, LV, 100 A, AC 690V, NH1, gL/gG, IEC, dual.. serves as a standard low-voltage protection component utilized in industrial distribution networks to interrupt overcurrent conditions and safeguard connected assets. It ensures dependable circuit isolation during electrical faults. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH2
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 315 A
  • Rated voltage AC (EF007682): 690 V
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
315NHG2B-690
EAN
5027590476447
UPC
051712193016
Product Length/Depth
150 mm
Product Height
71 mm
Product Width
54 mm
Product Weight
0.605 kg
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
315 A
Voltage rating
690 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH0
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
