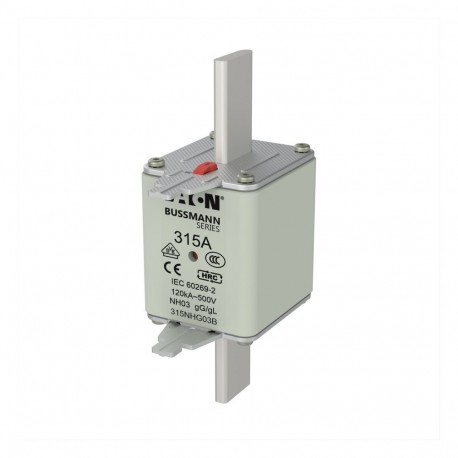

EATON - MOELLER NH FUSE 315A 500V GG/GL SIZE 03 NH FUSE 315A 500V GG/GL SIZE 03 315NHG03B EATON ELECTRIC Fuse-link, LV, 315 A, AC 500 V, NH03, gL/gG, IEC, d.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 315A 500V GG/GL SIZE 03 315NHG03B EATON ELECTRIC Fuse-link, LV, 315 A, AC 500 V, NH03, gL/gG, IEC, d..

NH FUSE 315A 500V GG/GL SIZE 03

315NHG03B

315NHG03B

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 315 A, AC 500 V, NH03, gL/gG, IEC, dual indicator, live gripping lugs NH FUSE 315A 500V GG/GL SIZE 03 Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 315A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
315NHG03B
EAN
5027590476362
UPC
051712626217
Product Length/Depth
150 mm
Product Height
71 mm
Product Width
54 mm
Product Weight
612.667 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Type
fuse
Special features
Live gripping lug
Application
Amperage Rating
315 A
Fitted with:
Metal gripping lugs
Fuse size
NH02
Current type
AC
Breaking capacity
120 kA
Frequency rating - max
62 Hz
Frequency rating - min
45 Hz
Rated switching capacity
120 kA
Rated voltage AC
500 V
Class
Class gG/gL
Fuse type
Square body with knife blade contact
Utilization category
gL/gG (cable protection/equipment protection)
Interrupt rating
120 kAIC
Fuse indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
No
Connection
Blade end
Construction
NH03
Construction size
NH03
Fuse shape
Square body
Knife blade contacts
Voltage type
AC
Suitable for
Microswitch BVL50
Material
Ceramic body
Quantity
3
Voltage rating
500 V

ETIM for 315NHG03B Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH03
Voltage type (EF000187) AC
Rated current (EF000227) 315 A
Rated voltage AC (EF007682) 500 V
Utilization category according to IEC 60269 (EF002572) gG (cable protection/equipment protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
