View larger
Images are for illustrative purposes only. Please refer to data sheet for details

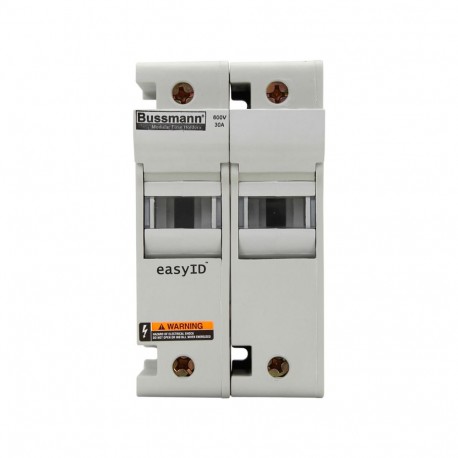

30AJ MODULEAR FUSEHOLDER 2 POLE CH30J2 EATON ELECTRIC Fuse-holder, low voltage, 30 A, AC 600 V, DC 600 V, UL..
30AJ MODULEAR FUSEHOLDER 2 POLE
CH30J2
CH30J2
EATON - MOELLER
3 Pcs.
Fuse-holder, low voltage, 30 A, AC 600 V, DC 600 V, UL Class J, 65 x 72 x 117 mm, 2P, UL, CSA
30AJ MODULEAR FUSEHOLDER 2 POLE
Fuse holder, low voltage, 30 A, AC 600 V, DC 600 V, 200 kA, 65 x 72 x 117 mm, J, 2P, UL, CSA, 35 mm DIN rail, Panel Mounting
Automation > Low Voltage HRC fuse base
Bussmann Series High speed fuses
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Fuse holder, low voltage, 30 A, AC 600 V, DC 600 V, 200 kA, 65 x 72 x 117 mm, J, 2P, UL, CSA, 35 mm DIN rail, Panel Mounting
Fuse accessory, Fuse-holder, low voltage, 30 A, AC 600 V, DC 600 V, UL Class J, 65 x 72 x 117 mm, 2P, UL, CSA, 35 mm DIN rail, Panel Mounting, Class J fuses up to 30 A, UL 512, IP20, Breaking Capacity 200 kA
Delivery program
Product range
Fuse accessory
Basic function
Fuse-holder
Field of application
low voltage
Rated current [I]
30 A
Rated voltage
AC 600 V
DC 600 V
DC 600 V
Size
65 x 72 x 117 mm
Utilization category
J
Description
35 mm DIN rail
Panel Mounting
Panel Mounting
Protection
IP20
Breaking Capacity
200 kA
Number of poles
2P
usable for size/applications
Class J fuses up to 30 A
Standard/Approval
UL
CSA
CSA
Standards/Regulations
UL 512
Technical data ETIM 7.0
Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse base (EC000067)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse systems / Low-Voltage HRC fuse base ([email protected] [AKE278013])
Construction size
Other
Number of poles
2
Rated current
30 A
Bus-mounting type
No
Swivelling mechanism
No
