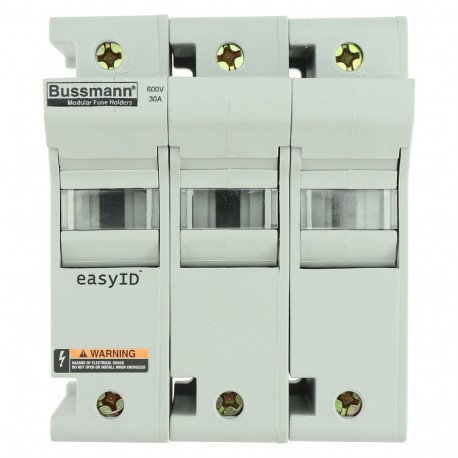

EATON - MOELLER 30AJ MODULAR FUSEHOLDER 3 POLE 30AJ MODULAR FUSEHOLDER 3 POLE CH30J3 EATON ELECTRIC Fuse-holder, low voltage, 30 A, AC 600 V, DC 600 V, UL .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

30AJ MODULAR FUSEHOLDER 3 POLE CH30J3 EATON ELECTRIC Fuse-holder, low voltage, 30 A, AC 600 V, DC 600 V, UL ..

30AJ MODULAR FUSEHOLDER 3 POLE

CH30J3

CH30J3

EATON - MOELLER

2 Pcs.

Fuse-holder, low voltage, 30 A, AC 600 V, DC 600 V, UL Class J, 98 x 72 x 117 mm, 3P, UL, CSA 30AJ MODULAR FUSEHOLDER 3 POLE Fuse holder, low voltage, 30 A, AC 600 V, DC 600 V, 200 kA, 98 x 72 x 117 mm, J, 3P, UL, CSA, 35 mm DIN rail, Panel Mounting

Automation > Low Voltage HRC fuse base
Bussmann Series High speed fuses

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A modular fuseholder is a protective housing device mounted onto DIN rails to safely integrate cartridge fuses into industrial control cabinets and automation panels. It provides accessible overcurrent protection while isolating live elements from nearby technicians during routine diagnostic checks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: 30AJ MODULAR FUSEHOLDER 3 POLE
  • Catalogue code: CH30J3

More info

▲
Fuse holder, low voltage, 30 A, AC 600 V, DC 600 V, 200 kA, 98 x 72 x 117 mm, J, 3P, UL, CSA, 35 mm DIN rail, Panel Mounting
Fuse accessory, Fuse-holder, low voltage, 30 A, AC 600 V, DC 600 V, UL Class J, 98 x 72 x 117 mm, 3P, UL, CSA, 35 mm DIN rail, Panel Mounting, Class J fuses up to 30 A, UL 512, IP20, Breaking Capacity 200 kA

Delivery program

Product range
Fuse accessory
Basic function
Fuse-holder
Field of application
low voltage
Rated current [I]
30 A
Rated voltage
AC 600 V
DC 600 V
Size
98 x 72 x 117 mm
Utilization category
J
Description
35 mm DIN rail
Panel Mounting
Protection
IP20
Breaking Capacity
200 kA
Number of poles
3P
usable for size/applications
Class J fuses up to 30 A
Standard/Approval
UL
CSA
Standards/Regulations
UL 512

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse base (EC000067)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse systems / Low-Voltage HRC fuse base ([email protected] [AKE278013])
Construction size
Other
Number of poles
3
Rated current
30 A
Bus-mounting type
No
Swivelling mechanism
No
