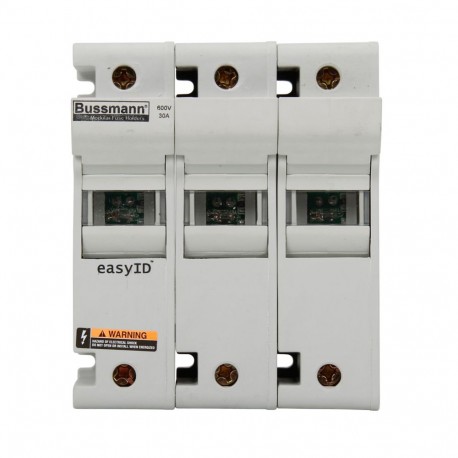

EATON - MOELLER 30A INDICATOR FUSEHOLDER 3 POLE 30A INDICATOR FUSEHOLDER 3 POLE CH30J3I EATON ELECTRIC Fuse-holder, low voltage, 25 A, AC 400 V, 8 x 31 mm, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

30A INDICATOR FUSEHOLDER 3 POLE CH30J3I EATON ELECTRIC Fuse-holder, low voltage, 25 A, AC 400 V, 8 x 31 mm, ..

30A INDICATOR FUSEHOLDER 3 POLE

CH30J3I

CH30J3I

EATON - MOELLER

2 Pcs.

Fuse-holder, low voltage, 25 A, AC 400 V, 8 x 31 mm, 3P, IEC, with indicator 30AJ INDICATOR FUSEHOLDER 3 POLE Fuse holder, low voltage, 30 A, AC 600 V, DC 600 V, 200 kA, 98 x 72 x 117 mm, J, 3P, UL, CSA, Neon indicator

Automation > Low Voltage HRC fuse base
Bussmann Series High speed fuses

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Multi-pole configurations like the Eaton Moeller 30A INDICATOR FUSEHOLDER 3 POLE consolidate phase protection into a single modular footprint for motor control applications. Engineers select multi-pole holders to streamline panel layouts and ensure simultaneous disconnection across all active phases. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: 30A INDICATOR FUSEHOLDER 3 POLE
  • Catalogue code: CH30J1I
  • Catalogue title: 30A INDICATOR FUSEHOLDER 3 POLE CH30J1I EATON ELECTRIC Fuse-holder, low voltage, 25 A, AC 400 V, 8 x 31 mm, ..

More info

▲
Fuse holder, low voltage, 30 A, AC 600 V, DC 600 V, 200 kA, 98 x 72 x 117 mm, J, 3P, UL, CSA, Neon indicator
Fuse accessory, Fuse-holder, low voltage, 30 A, AC 600 V, DC 600 V, UL Class J, 98 x 72 x 117 mm, 3P, UL, CSA, Neon Lamp, 35 mm DIN rail, Panel Mounting, Class J fuses up to 30 A, UL 512, IP20, Breaking Capacity 200 kA

Delivery program

Product range
Fuse accessory
Basic function
Fuse-holder
Field of application
low voltage
Rated current [I]
30 A
Rated voltage
AC 600 V
DC 600 V
Size
98 x 72 x 117 mm
Utilization category
J
Status indicator
Neon indicator
Description
35 mm DIN rail
Panel Mounting
Protection
IP20
Breaking Capacity
200 kA
Number of poles
3P
usable for size/applications
Class J fuses up to 30 A
Standard/Approval
UL
CSA
Standards/Regulations
UL 512

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse base (EC000067)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse systems / Low-Voltage HRC fuse base ([email protected] [AKE278013])
Construction size
Other
Number of poles
3
Rated current
30 A
Bus-mounting type
No
Swivelling mechanism
No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
