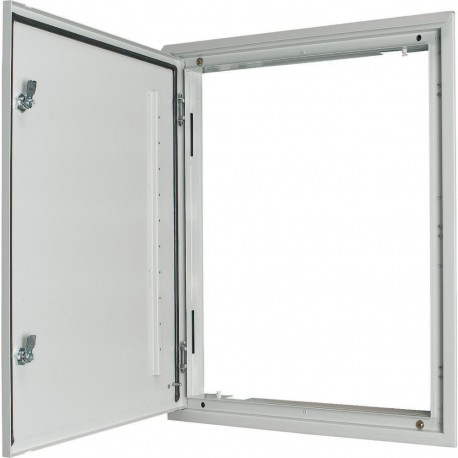

EATON - MOELLER BPA-U-3S-600/12 BPA-U-3S-600/12 111224 0002459676 EATON ELECTRIC 3-component flush-mounting door frame with door, open air, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BPA-U-3S-600/12 111224 0002459676 EATON ELECTRIC 3-component flush-mounting door frame with door, open air, ..

BPA-U-3S-600/12

111224

0002459676

EATON - MOELLER

1 Pcs.

3-component flush-mounting door frame with door, open air, double-bit lock, IP43, HxW=1260x600mm 3-component IP43 flush-mounted door frame, with door, BPA-U-3S-...Width 600 mm, outside height 1260 mm, front plate height 1150 mm, with foamed gasket and drip molding for outdoor use, double-bit lock, material characteristic: powder-spray painted aluminum, RAL 7035, equipment supplied: frames, door with hinges

Automation > Door/operating panel (switchgear cabinet)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller 3-component flush-mounting door frame part number BPA-U-3S-600/12 provides a complete recessed mounting solution for electrical distribution boards. Flush frames with integrated doors secure internal wiring spaces while blending cleanly into surrounding walls.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Stop door
  • Version as glazed door (EF006966): No
  • Width (EF000008): 635 mm
  • Height (EF000040): 1265 mm
  • Depth (EF000049): 90 mm
  • EMC-version (EF001062): No
  • Material (EF002169): Aluminium
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey
  • Degree of protection (IP) (EF005474): IP43

More info

▲
3-component flush-mounting door frame with door, open air, double-bit lock, IP43, HxW=1260x600mm
EL-Nummer (Norway)
0002459676
3-component IP43 flush-mounted door frame, with door, BPA-U-3S-...Width 600 mm, outside height 1260 mm, front plate height 1150 mm, with foamed gasket and drip molding for outdoor use, double-bit lock, material characteristic: powder-spray painted aluminum, RAL 7035, equipment supplied: frames, door with hinges
[

Delivery program

Mounting type
Flush mounted
Features
with door
Material
Aluminium
Door interlock
Double-ward lock
Installation site
Outdoor
Degree of Protection
IP43
Surface finish
With powder coating
Suitable for width
600 mm
Colour
light gray (RAL 7035)
,

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Door/operating panel (switchgear cabinet) (EC000747)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Door (electrical cabinet) / Door/operating panel (enclosure) ([email protected] [ACN614011])
Model
Stop door
Version as glazed door
No
Version as door for disconnecting switch interlocking
No
Width
635 mm
Height
1260 mm
Depth
85 mm
EMC-version
No
Material
Aluminium
Surface finishing
Powder coating
Colour
Grey
Degree of protection (IP)
IP43
Degree of protection (NEMA)
-
]
