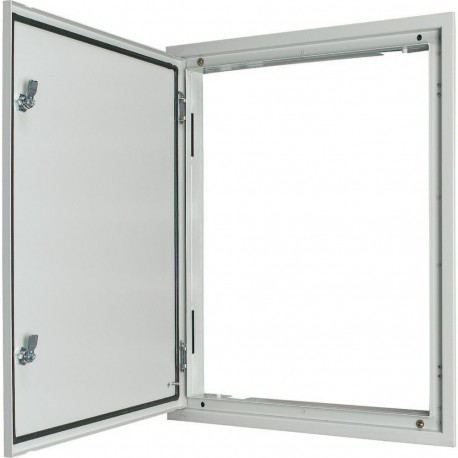

EATON - MOELLER BPM-U-3S-600/7 BPM-U-3S-600/7 111256 0002459708 EATON ELECTRIC 3-component flush-mounting door frame with door, double-bit .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BPM-U-3S-600/7 111256 0002459708 EATON ELECTRIC 3-component flush-mounting door frame with door, double-bit ..

BPM-U-3S-600/7

111256

0002459708

EATON - MOELLER

1 Pcs.

3-component flush-mounting door frame with door, double-bit lock, IP54, HxW=760x600mm 3-component IP54 flush-mounted door frame, with door, BPM-U-3S-...Width 600 mm, outside height 760 mm, front plate height 650 mm, with foamed gasket for damp location applications, double-bit lock, material characteristic: powder-spray painted aluminum, RAL 7035, equipment supplied: frames, door with hinges

Automation > Door/operating panel (switchgear cabinet)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller BPM-U-3S-600/7 3-component flush-mounting door frame with door, double-bit is a structural enclosure accessory used to secure and seal electrical distribution setups against unauthorized access and environmental elements. This door frame provides reliable physical protection and clean front-panel access for industrial control panels and modular switchboard assemblies. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Stop door
  • Version as glazed door (EF006966): No
  • Width (EF000008): 635 mm
  • Height (EF000040): 765 mm
  • Depth (EF000049): 70 mm
  • EMC-version (EF001062): No
  • Material (EF002169): Aluminium
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey
  • Degree of protection (IP) (EF005474): IP54

More info

▲
3-component flush-mounting door frame with door, double-bit lock, IP54, HxW=760x600mm
EL-Nummer (Norway)
0002459708
3-component IP54 flush-mounted door frame, with door, BPM-U-3S-...Width 600 mm, outside height 760 mm, front plate height 650 mm, with foamed gasket for damp location applications, double-bit lock, material characteristic: powder-spray painted aluminum, RAL 7035, equipment supplied: frames, door with hinges
[

Delivery program

Mounting type
Flush mounted
Features
with door
Material
Aluminium
Door interlock
Double-ward lock
Installation site
Moisture-proof
Degree of Protection
IP54
Surface finish
With powder coating
Suitable for width
600 mm
Colour
light gray (RAL 7035)
,

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Door/operating panel (switchgear cabinet) (EC000747)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Door (electrical cabinet) / Door/operating panel (enclosure) ([email protected] [ACN614011])
Model
Stop door
Version as glazed door
No
Version as door for disconnecting switch interlocking
No
Width
635 mm
Height
760 mm
Depth
85 mm
EMC-version
No
Material
Aluminium
Surface finishing
Powder coating
Colour
Grey
Degree of protection (IP)
IP54
Degree of protection (NEMA)
-
]

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
