EATON - MOELLER BPM-U-3S-400/4 BPM-U-3S-400/4 111251 0002459703 EATON ELECTRIC 3-component flush-mounting door frame with door, double-bit .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BPM-U-3S-400/4 111251 0002459703 EATON ELECTRIC 3-component flush-mounting door frame with door, double-bit ..

BPM-U-3S-400/4

111251

0002459703

EATON - MOELLER

1 Pcs.

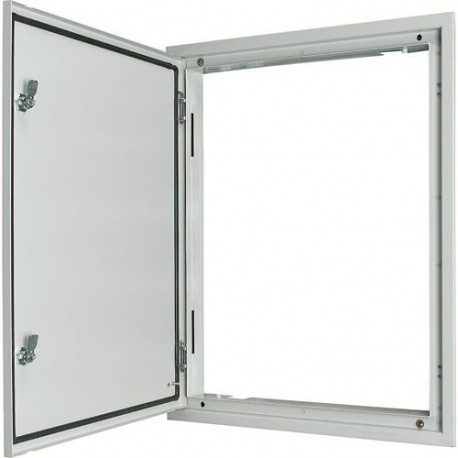

3-component flush-mounting door frame with door, double-bit lock, IP54, HxW=460x400mm 3-component IP54 flush-mounted door frame, with door, BPM-U-3S-...Width 400 mm, outside height 460 mm, front plate height 350 mm, with foamed gasket for damp location applications, double-bit lock, material characteristic: powder-spray painted aluminum, RAL 7035, equipment supplied: frames, door with hinges

Automation > Door/operating panel (switchgear cabinet)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller BPM-U-3S-400/4 is a flush-mounting door frame featuring an integrated closure mechanism for electrical enclosure installations. Flush-mounted frames and doors provide a clean, secure exterior finish for wall recesses housing distribution equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Stop door
  • Version as glazed door (EF006966): false
  • Width (EF000008): 460 mm
  • Height (EF000040): 90 mm
  • Depth (EF000049): 490 mm
  • EMC-version (EF001062): true
  • Material (EF002169): Aluminium
  • Surface finishing (EF006569): Powder coating
  • Colour (EF000007): Grey
  • Degree of protection (IP) (EF005474): IP54

More info

▲

General specifications

Product Name
Eaton xEnergy Basic LV systems Low voltage switchgear
Catalog Number
111251
Model Code
BPM-U-3S-400/4
EAN
4015081108121
Product Length/Depth
490 mm
Product Height
90 mm
Product Width
460 mm
Product Weight
2.4 kg
Compliances
RoHS conform

Delivery program

Type
Additional equipment
Model
Stop door
Application
Moisture-proof (installation site)
Color
Gray
Light gray (RAL 7035)

Technical data - mechanical

Surface finishing
Powder coating
With powder coating
Mounting method
Flush mounting
Material
Aluminum
Cover/door type
Double-ward lock
Housing material
Aluminum
Suitable for width
400 mm

Additional information

Features
EMC-version
Functions
Additional equipment
Special features
With door

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
