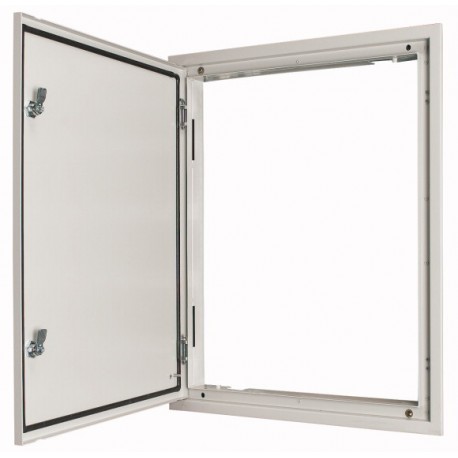

EATON - MOELLER BPM-U-3S-1200/17 BPM-U-3S-1200/17 111281 0002459733 EATON ELECTRIC 3-component flush-mounting door frame with door, double-bi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BPM-U-3S-1200/17 111281 0002459733 EATON ELECTRIC 3-component flush-mounting door frame with door, double-bi..

BPM-U-3S-1200/17

111281

0002459733

EATON - MOELLER

1 Pcs.

3-component flush-mounting door frame with door, double-bit lock, IP54, HxW=1760x1200mm

Automation > Door/operating panel (switchgear cabinet)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller BPM-U-3S-1200/17 3-component flush-mounting door frame with door, double-bi.. provides a complete mounting and enclosure solution for large modular distribution boards. Flush-mounting frames secure electrical assemblies tightly within building walls while offering safe, lockable operator access. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: BPM-U-3S-1200/17
  • Catalogue code: 111281

More info

▲
3-component flush-mounting door frame with door, double-bit lock, IP54, HxW=1760x1200mm
EL-Nummer (Norway)
0002459733
3-component IP54 flush-mounted door frame, with door, BPM-U-3S-...Width 1200 mm, outside height 1760 mm, front plate height 1650 mm, with foamed gasket for damp location applications, double-bit lock, material characteristic: powder-spray painted aluminum, RAL 7035, equipment supplied: frames, door with hinges
[

Delivery program

Mounting type
Flush mounted
Features
with door
Material
Aluminium
Door interlock
Double-ward lock
Installation site
Moisture-proof
Degree of Protection
IP54
Surface finish
With powder coating
Suitable for width
1200 mm
Colour
light gray (RAL 7035)
,

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Door/operating panel (switchgear cabinet) (EC000747)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Door (electrical cabinet) / Door/operating panel (enclosure) ([email protected] [ACN614011])
Model
Stop door
Version as glazed door
No
Version as door for disconnecting switch interlocking
No
Width
1235 mm
Height
1760 mm
Depth
85 mm
EMC-version
No
Material
Aluminium
Surface finishing
Powder coating
Colour
Grey
Degree of protection (IP)
IP54
Degree of protection (NEMA)
-
]
