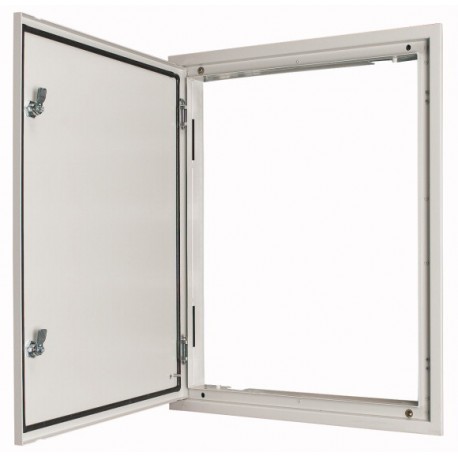

EATON - MOELLER BPM-U-3S-1000/20 BPM-U-3S-1000/20 111276 0002459728 EATON ELECTRIC 3-component flush-mounting door frame with door, double-bi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BPM-U-3S-1000/20 111276 0002459728 EATON ELECTRIC 3-component flush-mounting door frame with door, double-bi..

BPM-U-3S-1000/20

111276

0002459728

EATON - MOELLER

1 Pcs.

3-component flush-mounting door frame with door, double-bit lock, IP54, HxW=2060x1000mm

Automation > Door/operating panel (switchgear cabinet)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller 3-component flush-mounting door frame with door is designed to enclose and protect electrical distribution equipment installed within commercial and industrial facilities. Such components provide essential physical security, prevent unauthorized access to live internal components, and help maintain environmental ingress ratings for wall enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: BPM-U-3S-1000/20
  • Catalogue code: 111276
  • Catalogue title: BPM-U-3S-1000/20 111276 0002459728 EATON ELECTRIC 3-component flush-mounting door frame with door, double-bi..
  • Product description: 3-component flush-mounting door frame with door, double-bit lock, IP54, HxW=2060x1000mm EL-Nummer (Norway) 0002459728 3-component IP54 flush-mounted door frame, with door, BPM-U-3S-...Width 1000 mm, outside height 2060 m
  • Manufacturer summary: 3-component flush-mounting door frame with door, double-bit lock, IP54, HxW=2060x1000mm

More info

▲
3-component flush-mounting door frame with door, double-bit lock, IP54, HxW=2060x1000mm
EL-Nummer (Norway)
0002459728
3-component IP54 flush-mounted door frame, with door, BPM-U-3S-...Width 1000 mm, outside height 2060 mm, front plate height 1950 mm, with foamed gasket for damp location applications, double-bit lock, material characteristic: powder-spray painted aluminum, RAL 7035, equipment supplied: frames, door with hinges
[

Delivery program

Mounting type
Flush mounted
Features
with door
Material
Aluminium
Door interlock
Double-ward lock
Installation site
Moisture-proof
Degree of Protection
IP54
Surface finish
With powder coating
Suitable for width
1000 mm
Colour
light gray (RAL 7035)
,

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Door/operating panel (switchgear cabinet) (EC000747)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Door (electrical cabinet) / Door/operating panel (enclosure) ([email protected] [ACN614011])
Model
Stop door
Version as glazed door
No
Version as door for disconnecting switch interlocking
No
Width
1035 mm
Height
2060 mm
Depth
85 mm
EMC-version
No
Material
Aluminium
Surface finishing
Powder coating
Colour
Grey
Degree of protection (IP)
IP54
Degree of protection (NEMA)
-
]
