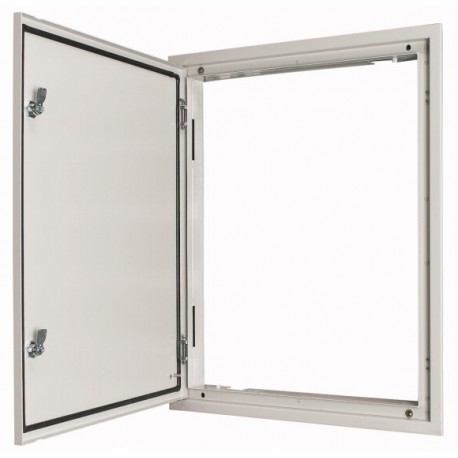

EATON - MOELLER BPM-U-3S-1000/12 BPM-U-3S-1000/12 111273 0002459725 EATON ELECTRIC 3-component flush-mounting door frame with door, double-bi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BPM-U-3S-1000/12 111273 0002459725 EATON ELECTRIC 3-component flush-mounting door frame with door, double-bi..

BPM-U-3S-1000/12

111273

0002459725

EATON - MOELLER

1 Pcs.

3-component flush-mounting door frame with door, double-bit lock, IP54, HxW = 1260 x 1000 mm

Automation > Door/operating panel (switchgear cabinet)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Enclosing industrial control gear securely, this Eaton Moeller 3-component flush-mounting door frame with door serves as a robust front barrier for electrical enclosures. Door frames of this type are widely utilized in control rooms and plant floors to shield sensitive switchgear assemblies from dust, moisture, and physical tampering. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: BPM-U-3S-1000/12
  • Catalogue code: 111273
  • Catalogue title: BPM-U-3S-1000/12 111273 0002459725 EATON ELECTRIC 3-component flush-mounting door frame with door, double-bi..
  • Product description: 3-component flush-mounting door frame with door, double-bit lock, IP54, HxW = 1260 x 1000 mm EL-Nummer (Norway) 0002459725 3-component IP54 flush-mounted door frame, with door, BPM-U-3S-...Width 1000 mm, outside height 1
  • Manufacturer summary: 3-component flush-mounting door frame with door, double-bit lock, IP54, HxW = 1260 x 1000 mm

More info

▲
3-component flush-mounting door frame with door, double-bit lock, IP54, HxW = 1260 x 1000 mm
EL-Nummer (Norway)
0002459725
3-component IP54 flush-mounted door frame, with door, BPM-U-3S-...Width 1000 mm, outside height 1260 mm, front plate height 1150 mm, with foamed gasket for damp location applications, double-bit lock, material characteristic: powder-spray painted aluminum, RAL 7035, equipment supplied: frames, door with hinges
[

Delivery program

Mounting type
Flush mounted
Features
with door
Material
Aluminium
Door interlock
Double-ward lock
Installation site
Moisture-proof
Degree of Protection
IP54
Surface finish
With powder coating
Suitable for width
1000 mm
Colour
light gray (RAL 7035)
,

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Door/operating panel (switchgear cabinet) (EC000747)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Door (electrical cabinet) / Door/operating panel (enclosure) ([email protected] [ACN614011])
Model
Stop door
Version as glazed door
No
Version as door for disconnecting switch interlocking
No
Width
1035 mm
Height
1260 mm
Depth
85 mm
EMC-version
No
Material
Aluminium
Surface finishing
Powder coating
Colour
Grey
Degree of protection (IP)
IP54
Degree of protection (NEMA)
-
]

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
