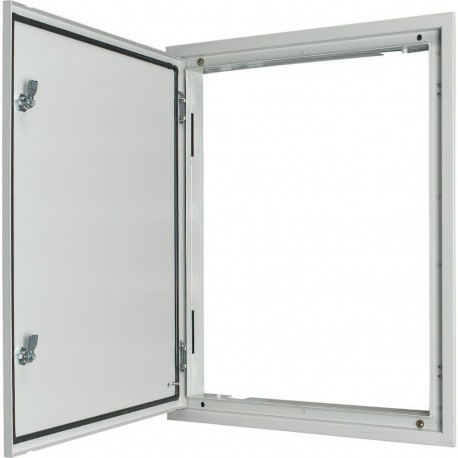

EATON - MOELLER BPM-U-3S-800/12-W BPM-U-3S-800/12-W 144250 0002455275 EATON ELECTRIC 3-component flush-mounted door frame with door, double-bi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BPM-U-3S-800/12-W 144250 0002455275 EATON ELECTRIC 3-component flush-mounted door frame with door, double-bi..

BPM-U-3S-800/12-W

144250

0002455275

EATON - MOELLER

1 Pcs.

3-component flush-mounted door frame with door, double-bit lock, IP54, HxW=1260x800mm, white 3-component IP54 flush-mounted door frame, with door, BPM-U-3S-...Width 800 mm, outside height 1260 mm, front plate height 1150 mm, with foamed gasket for damp location applications, double-bit lock, material characteristic: powder-spray painted aluminum, RAL 9016, equipment supplied: frames, door with hinges

Automation > Door/operating panel (switchgear cabinet)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 3-component flush-mounted door frame with door, double-bi.. delivers robust access control and enclosure sealing for electrical distribution hubs. Flush mounting configurations are widely used in commercial buildings and industrial plants to maintain smooth wall profiles while housing distribution equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Stop door
  • Version as glazed door (EF006966): No
  • Width (EF000008): 835 mm
  • Height (EF000040): 1265 mm
  • Depth (EF000049): 70 mm
  • EMC-version (EF001062): No
  • Material (EF002169): Aluminium
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): White
  • Degree of protection (IP) (EF005474): IP54

More info

▲
EL-Nummer (Norway)
0002455275
3-component flush-mounted door frame with door, double-bit lock, IP54, HxW=1260x800mm, white
3-component IP54 flush-mounted door frame, with door, BPM-U-3S-...Width 800 mm, outside height 1260 mm, front plate height 1150 mm, with foamed gasket for damp location applications, double-bit lock, material characteristic: powder-spray painted aluminum, RAL 9016, equipment supplied: frames, door with hinges

Delivery program

Mounting type
Flush mounted
Features
with door
Material
Aluminium
Door interlock
Double-ward lock
Installation site
Moisture-proof
Degree of Protection
IP54
Surface finish
With powder coating
Suitable for width
800 mm
Colour
white (RAL 9016)

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Door/operating panel (switchgear cabinet) (EC000747)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Door (electrical cabinet) / Door/operating panel (enclosure) ([email protected] [ACN614011])
Model
Stop door
Version as glazed door
No
Version as door for disconnecting switch interlocking
No
Width
835 mm
Height
1260 mm
Depth
85 mm
EMC-version
No
Material
Aluminium
Surface finishing
Powder coating
Colour
White
Degree of protection (IP)
IP54
Degree of protection (NEMA)
