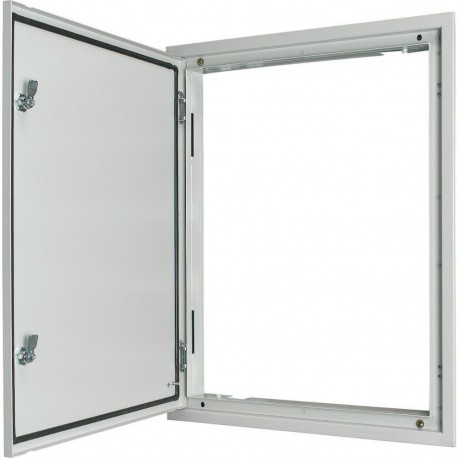

EATON - MOELLER BPM-U-3S-600/20-W BPM-U-3S-600/20-W 144247 0002455272 EATON ELECTRIC 3-component flush-mounted door frame with door, double-bi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BPM-U-3S-600/20-W 144247 0002455272 EATON ELECTRIC 3-component flush-mounted door frame with door, double-bi..

BPM-U-3S-600/20-W

144247

0002455272

EATON - MOELLER

1 Pcs.

3-component flush-mounted door frame with door, double-bit lock, IP54, HxW=2060x600mm, white 3-component IP54 flush-mounted door frame, with door, BPM-U-3S-...Width 600 mm, outside height 2060 mm, front plate height 1950 mm, with foamed gasket for damp location applications, double-bit lock, material characteristic: powder-spray painted aluminum, RAL 9016, equipment supplied: frames, door with hinges

Automation > Door/operating panel (switchgear cabinet)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller flush-mounted door frame featuring an integrated closure mechanism provides clean architectural integration for wall-recessed distribution assemblies. Assemblies of this type ensure secure access management while maintaining a flush profile against finished interior surfaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Stop door
  • Version as glazed door (EF006966): No
  • Width (EF000008): 635 mm
  • Height (EF000040): 2065 mm
  • Depth (EF000049): 70 mm
  • EMC-version (EF001062): No
  • Material (EF002169): Aluminium
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): White
  • Degree of protection (IP) (EF005474): IP54

More info

▲
3-component flush-mounted door frame with door, double-bit lock, IP54, HxW=2060x600mm, white
3-component IP54 flush-mounted door frame, with door, BPM-U-3S-...Width 600 mm, outside height 2060 mm, front plate height 1950 mm, with foamed gasket for damp location applications, double-bit lock, material characteristic: powder-spray painted aluminum, RAL 9016, equipment supplied: frames, door with hinges

Delivery program

Mounting type
Flush mounted
Features
with door
Material
Aluminium
Door interlock
Double-ward lock
Installation site
Moisture-proof
Degree of Protection
IP54
Surface finish
With powder coating
Suitable for width
600 mm
Colour
white (RAL 9016)

Technical data ETIM 7.0

Armarios, cajas, cubrebornes, pupitres y accesorios (EG000011) / Puerta/panel de mando para armarios eléctricos (EC000747)
Tecnología electrónica, de automatización y de mando de procesos / Armario, armazón, caja, chasis de módulos / Puerta (armario de distribución) / Door/operating panel (enclosure) ([email protected] [ACN614011])
Modelo
Puerta de parada
Versión de puerta de vidrio
No
Versión de puerta para desconectar interbloqueo de interruptor
No
Anchura
635 Millimeter
Altura
2060 Millimeter
Profundidad
85 Millimeter
Versión EMC
No
Material
Aluminio
Tipo de superficie
Con revestimiento en polvo
Color
Blanco
Grado de protección (IP)
IP54
