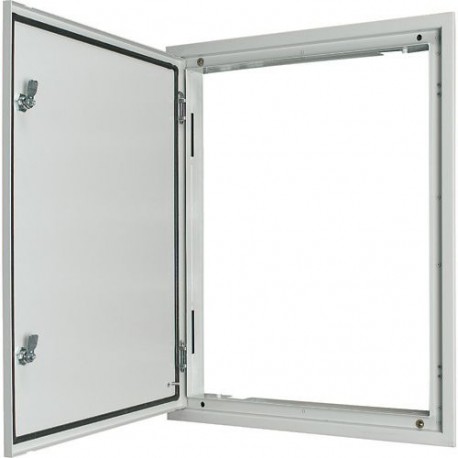

EATON - MOELLER BPM-U-3S-1000/10-W BPM-U-3S-1000/10-W 144254 0002455279 EATON ELECTRIC 3-component flush-mounted door frame with door, double-b.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BPM-U-3S-1000/10-W 144254 0002455279 EATON ELECTRIC 3-component flush-mounted door frame with door, double-b..

BPM-U-3S-1000/10-W

144254

0002455279

EATON - MOELLER

1 Pcs.

3-component flush-mounted door frame with door, double-bit lock, IP54, HxW=1060x1000mm, white 3-component IP54 flush-mounted door frame, with door, BPM-U-3S-...Width 1000 mm, outside height 1060 mm, front plate height 950 mm, with foamed gasket for damp location applications, double-bit lock, material characteristic: powder-spray painted aluminum, RAL 9016, equipment supplied: frames, door with hinges

Automation > Door/operating panel (switchgear cabinet)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

BPM-U-3S-1000/10-W 144254 0002455279 EATON ELECTRIC 3-component flush-mounted door frame with door, double-b.. is an Eaton Moeller flush-mounted door frame and stop door assembly configured for recessed electrical distribution boards. Flush-mounting frames integrate seamlessly into walls to secure and conceal internal circuit protection devices in commercial spaces.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Stop door
  • Version as glazed door (EF006966): No
  • Width (EF000008): 1035 mm
  • Height (EF000040): 1065 mm
  • Depth (EF000049): 70 mm
  • EMC-version (EF001062): No
  • Material (EF002169): Aluminium
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): White
  • Degree of protection (IP) (EF005474): IP54

More info

▲

General specifications

Product Name
Eaton xEnergy Basic door
Catalog Number
144254
Model Code
BPM-U-3S-1000/10-W
EAN
4015081407644
Product Length/Depth
70 mm
Product Height
1065 mm
Product Width
1035 mm
Product Weight
7.11 kg
Compliances
RoHS conform

Delivery program

Type
Additional equipment
Model
Stop door
Application
Moisture-proof (installation site)
Color
White
Traffic white (RAL 9016)

Technical data - mechanical

Surface finishing
Powder coating
With powder coating
Mounting method
Flush mounting
Material
Aluminum
Cover/door type
Double-ward lock
Housing material
Aluminum
Suitable for width
1000 mm

Additional information

Functions
Additional equipment
Special features
With door
