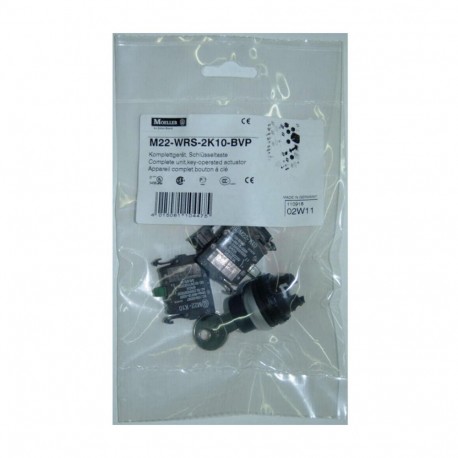

EATON - MOELLER M22-WRS-2K10-BVP M22-WRS-2K10-BVP 110918 Y7-110918 EATON ELECTRIC 2S key switch, complete device View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRS-2K10-BVP 110918 Y7-110918 EATON ELECTRIC 2S key switch, complete device

M22-WRS-2K10-BVP

110918

Y7-110918

EATON - MOELLER

1 Pcs.

2S key switch, complete device M22-WRS-2K10-BVP Eaton Moeller® series M22 Key-operated actuator, RMQ-Titan, maintained, 2 positions, 2 NO, Blister pack for hanging Key-operated actuator, Product range: RMQ-Titan, Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A key switch complete device delivers secure access control for machinery by requiring a physical key to toggle operating states. Automation engineers install these units on safety panels to restrict operational changes to authorized personnel only. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Key
  • Suitable for lighting (EF001142): false
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): true
  • Spring-return (EF001407): false
  • With front ring (EF006014): true
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
110918
Model Code
M22-WRS-2K10-BVP
EAN
4015081104475
Product Length/Depth
50 mm
Product Height
80 mm
Product Width
50 mm
Product Weight
0.063 kg
Compliances
CE
Certifications
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
