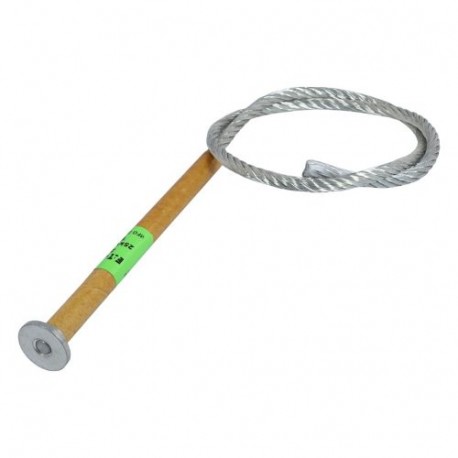

EATON - MOELLER 25KV 80A REM B/H EXPULSION LINK 25KV 80A REM B/H EXPULSION LINK 25TBR80 EATON ELECTRIC Expulsion fuse-link, medium voltage, 80 A, AC 25 kV, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

25KV 80A REM B/H EXPULSION LINK 25TBR80 EATON ELECTRIC Expulsion fuse-link, medium voltage, 80 A, AC 25 kV, ..

25KV 80A REM B/H EXPULSION LINK

25TBR80

25TBR80

EATON - MOELLER

10 Pcs.

Expulsion fuse-link, medium voltage, 80 A, AC 25 kV, 660 mm, ANSI, T slow, style BR termination 25KV 80A REM B/H EXPULSION LINK Expulsion fuse-link, medium voltage, 80 A, AC 25 kV, 660 mm, ANSI, T slow Fuse, Expulsion fuse-link, medium voltage, 80 A, AC 25 kV, 660 mm, ANSI, T slow, removable NEMA button head link, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA

Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller 25KV 80A REM B/H EXPULSION LINK functions as an expulsion fuse-link, medium voltage designed to protect distribution transformers and feeder lines from destructive electrical surges. These links are engineered to vaporize internally during a fault, rapidly clearing the circuit.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 80 A
  • Rated voltage (EF000228): 25 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Release characteristic (EF000889): T
  • Type of termination (EF012540): Removable buttonhead
  • Standard (EF009322): ANSI

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
25TBR80
EAN
5027590471633
Product Length/Depth
225 mm
Product Height
76 mm
Product Width
106 mm
Product Weight
0.119 g
Certifications
ANSI/IEEE Std C37.42

Electrical data

Amperage Rating
80 A
Voltage rating
25 kV
Voltage type
AC
Current characteristic type
Type T - Complies with ANSI C 37-42 requirements for slow acting T characteristics
Rated frequency - min
50 Hz

Product specification

Construction size
660 mm
Standard
ANSI
Type of termination
Removable buttonhead
Color
Green

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
