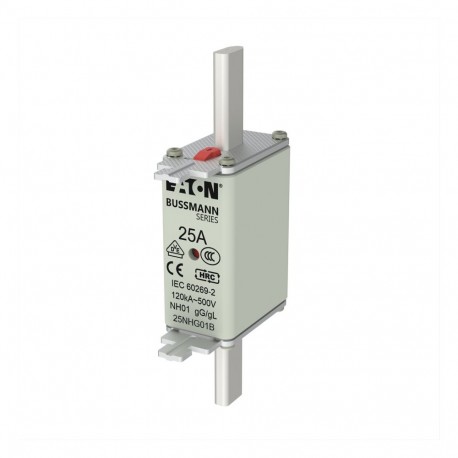

EATON - MOELLER NH FUSE 25A 500V GG/GL SIZE 01 NH FUSE 25A 500V GG/GL SIZE 01 25NHG01B EATON ELECTRIC Fuse-link, LV, 25 A, AC 500 V, NH01, gL/gG, IEC, dual.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 25A 500V GG/GL SIZE 01 25NHG01B EATON ELECTRIC Fuse-link, LV, 25 A, AC 500 V, NH01, gL/gG, IEC, dual..

NH FUSE 25A 500V GG/GL SIZE 01

25NHG01B

25NHG01B

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 25 A, AC 500 V, NH01, gL/gG, IEC, dual indicator, live gripping lugs NH FUSE 25A 500V GG/GL SIZE 01 Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 25A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller NH FUSE 25A 500V GG/GL SIZE 01 is an NH fuse-link designed for low-voltage electrical distribution networks. Industrial fuse-links act as primary safety devices, interrupting fault currents to protect cables and downstream electrical equipment from thermal damage during an overload or short circuit.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH01
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 25 A
  • Rated voltage AC (EF007682): 500 V
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
25NHG01B
EAN
5027590471015
UPC
051712625920
Product Length/Depth
135 mm
Product Height
57.8 mm
Product Width
29.55 mm
Product Weight
0.261 kg
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
25 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH0
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors
