View larger
Images are for illustrative purposes only. Please refer to data sheet for details

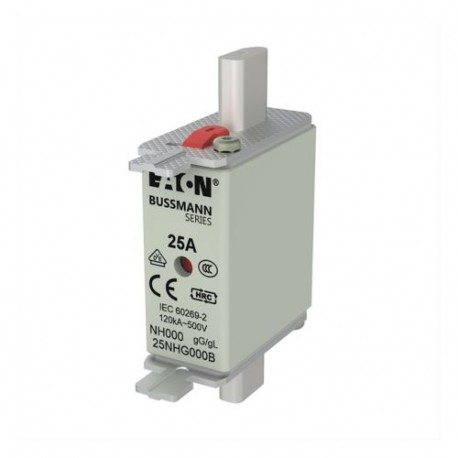

NH FUSE 25A 500V SIZE 000 GG MGL 25NHG000B EATON ELECTRIC Fuse-link, LV, 25 A, AC 500 V, NH000, gL/gG, IEC, ..
NH FUSE 25A 500V SIZE 000 GG MGL
25NHG000B
25NHG000B
EATON - MOELLER
3 Pcs.
NH FUSE 25A 500V SIZE 000 GG MGL
Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 25A, 120 kAIC, Combination fuse status indicator, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Metal plated copper contact plate, Ceramic body
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
25NHG000B
Model Code
NH FUSE 25A 500V SIZE 000 GG MGL
EAN
5027590470933
UPC
051712625791
Product Length/Depth
79 mm
Product Height
51 mm
Product Width
21 mm
Product Weight
0.12 kg
Compliances
CE Marked
RoHS Compliant
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620
IEC 60269-2
DIN 43620
Electrical data
Amperage Rating
25 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz
Product specification
Fuse size
NH01
Insulated metal gripping lugs (IMGL)
No
Accessories
Suitable for
Microswitch 170H0235
| Feature Name | Feature Value |
|---|---|
| Fuse construction type according to IEC 60269 (EF015865) | NH000 |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 25 A |
| Rated voltage AC (EF007682) | 500 V |
| Utilization category according to IEC 60269 (EF002572) | gG (cable protection/equipment protection) |
| Type of fuse status indicator (EF004473) | Combination fuse status indicator |
| Insulated metal gripping lugs (IMGL) (EF012538) | No |
