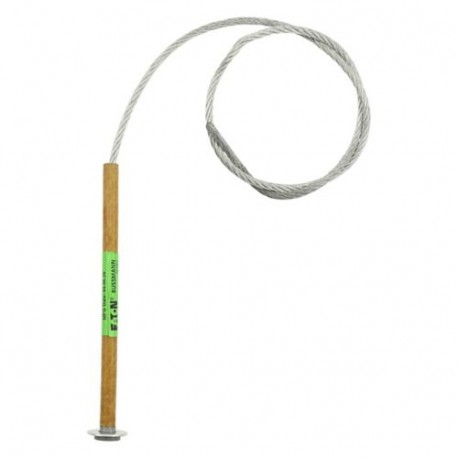

EATON - MOELLER 25KV 8AMP EXPULSION LINK 25KV 8AMP EXPULSION LINK 25TBR8 EATON ELECTRIC 25KV 8AMP EXPULSION LINK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

25KV 8AMP EXPULSION LINK 25TBR8 EATON ELECTRIC 25KV 8AMP EXPULSION LINK

25KV 8AMP EXPULSION LINK

25TBR8

25TBR8

EATON - MOELLER

25 Pcs.

25KV 8AMP EXPULSION LINK Expulsion link, medium voltage, 8 A, AC 25 kV, ANSI, T slow

Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for reliable overcurrent clearance, this Eaton Moeller expulsion fuse link safeguards utility grids and medium-voltage infrastructure from fault conditions. Expulsion links operate by utilizing internal arc pressure to expel gases and sever the circuit safely during an overload. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 8 A
  • Rated voltage (EF000228): 25 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Release characteristic (EF000889): T
  • Type of termination (EF012540): Removable buttonhead
  • Standard (EF009322): ANSI

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
25TBR8
EAN
5027590471619
Product Length/Depth
660 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
23.24 g
Certifications
ANSI/IEEE Std C37.42

Electrical data

Amperage Rating
8 A
Voltage rating
25 kV
Voltage type
AC
Current characteristic type
Type T - Complies with ANSI C 37-42 requirements for slow acting T characteristics
Rated frequency - min
50 Hz

Product specification

Construction size
660 mm
Standard
ANSI
Type of termination
Removable buttonhead
Color
Green
