View larger
Images are for illustrative purposes only. Please refer to data sheet for details

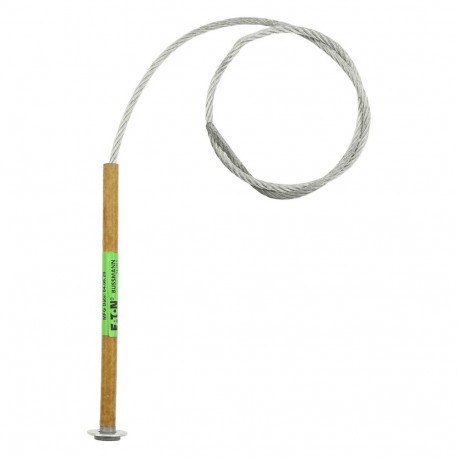

25KV 50AMP EXPULSION LINK 25TBR50 EATON ELECTRIC Expulsion fuse-link, medium voltage, 80 A, AC 15 kV, 533 mm..
25KV 50AMP EXPULSION LINK
25TBR50
25TBR50
EATON - MOELLER
25 Pcs.
Expulsion fuse-link, medium voltage, 80 A, AC 15 kV, 533 mm, ANSI, K fast, style BR termination
25KV 50AMP EXPULSION LINK
Expulsion link, medium voltage, 50 A, AC 25 kV, ANSI, T slow
Fuse, Expulsion link, medium voltage, 50 A, AC 25 kV, ANSI, T slow, fixed NEMA button head link with 1/4 inch UNF thread, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA
Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
25TBR50
EAN
5027590471572
Product Length/Depth
660 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
50.04 g
Certifications
ANSI/IEEE Std C37.42
Electrical data
Amperage Rating
50 A
Voltage rating
25 kV
Voltage type
AC
Current characteristic type
Type T - Complies with ANSI C 37-42 requirements for slow acting T characteristics
Rated frequency - min
50 Hz
Product specification
Construction size
660 mm
Standard
ANSI
Type of termination
Removable buttonhead
Color
Green
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 50 A |
| Rated voltage (EF000228) | 25 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Release characteristic (EF000889) | T |
| Type of termination (EF012540) | Removable buttonhead |
| Standard (EF009322) | ANSI |
