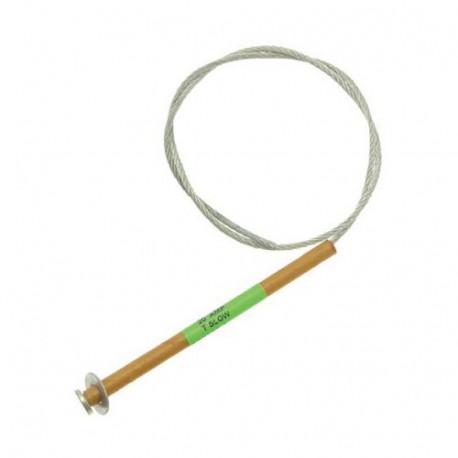

EATON - MOELLER 25KV 40A EXPULSION LINK 25KV 40A EXPULSION LINK 25TB40 EATON ELECTRIC Expulsion fuse-link, medium voltage, 40 A, AC 25 kV, 660 mm, A.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

25KV 40A EXPULSION LINK 25TB40 EATON ELECTRIC Expulsion fuse-link, medium voltage, 40 A, AC 25 kV, 660 mm, A..

25KV 40A EXPULSION LINK

25TB40

25TB40

EATON - MOELLER

25 Pcs.

Expulsion fuse-link, medium voltage, 40 A, AC 25 kV, 660 mm, ANSI, T slow, style B termination 25KV 40A EXPULSION LINK Fuse, Expulsion fuse-link, medium voltage, 40 A, AC 25 kV, 660 mm, ANSI, T slow, fixed NEMA button head link, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA

Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing dependable fault isolation for medium voltage electrical infrastructure, this Eaton Moeller 25KV 40A EXPULSION LINK acts as a precision protective component in overhead line cutouts. Such fuses are deployed across utility grids to safeguard transformers and branching circuits from excessive current draws and short circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 40 A
  • Rated voltage (EF000228): 25 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Release characteristic (EF000889): T
  • Type of termination (EF012540): Fixed buttonhead
  • Standard (EF009322): ANSI

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
25TB40
EAN
5027590471336
Product Length/Depth
225 mm
Product Height
76 mm
Product Width
106 mm
Product Weight
42.04 g
Certifications
ANSI/IEEE Std C37.42

Electrical data

Amperage Rating
40 A
Voltage rating
25 kV
Voltage type
AC
Current characteristic type
Type T - Complies with ANSI C 37-42 requirements for slow acting T characteristics
Rated frequency - min
50 Hz

Product specification

Construction size
660 mm
Standard
ANSI
Type of termination
Fixed buttonhead
Color
Green

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
