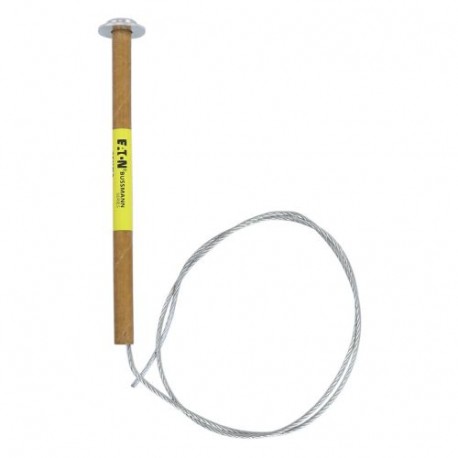

EATON - MOELLER 25KV 3A EXPULSION LINK 25KV 3A EXPULSION LINK 25KB3 EATON ELECTRIC Cartridge fuse, expulsion, MT, 3 A, AC 25 kV, 660 mm, ANSI a, K .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

25KV 3A EXPULSION LINK 25KB3 EATON ELECTRIC Cartridge fuse, expulsion, MT, 3 A, AC 25 kV, 660 mm, ANSI a, K ..

25KV 3A EXPULSION LINK

25KB3

25KB3

EATON - MOELLER

25 Pcs.

Cartridge fuse, expulsion, MT, 3 A, AC 25 kV, 660 mm, ANSI a, K fast 25KV 3A EXPULSION LINK Expulsion fuse-link, medium voltage, 3 A, AC 25 kV, 660 mm, ANSI, K fast, style B termination

Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Utility distribution networks utilize hardware such as this Eaton Moeller 25KV 3A EXPULSION LINK to manage fault isolation. Expulsion fuses are critical for safeguarding medium-voltage transformers and lines against unexpected surges. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: 25KV 3A EXPULSION LINK
  • Catalogue code: 25KB3
  • Catalogue title: 25KV 3A EXPULSION LINK 25KB3 EATON ELECTRIC Cartridge fuse, expulsion, MT, 3 A, AC 25 kV, 660 mm, ANSI a, K ..
  • Product description: General specifications Product Name Eaton Bussmann series medium voltage expulsion fuse Catalog Number 25KB3 EAN 5027590470285 UPC 051712398596 Product Length/Depth 225 mm Product Height 76 mm Product Width 106 mm Produc
  • Manufacturer summary: Cartridge fuse, expulsion, MT, 3 A, AC 25 kV, 660 mm, ANSI a, K fast 25KV 3A EXPULSION LINK Expulsion fuse-link, medium voltage, 3 A, AC 25 kV, 660 mm, ANSI, K fast, style B termination

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
25KB3
EAN
5027590470285
UPC
051712398596
Product Length/Depth
225 mm
Product Height
76 mm
Product Width
106 mm
Product Weight
17.52 g
Certifications
ANSI/IEEE Std C37.42

Electrical data

Amperage Rating
3 A
Voltage rating
25 kV
Voltage type
AC
Current characteristic type
Type K - Complies with ANSI C 37-42 requirements for fast acting K Characteristics
Rated frequency - min
50 Hz

Product specification

Construction size
660 mm
Standard
ANSI
Type of termination
Fixed buttonhead
Color
Yellow

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
