NH FUSE 250A 690V gG SIZE 1 250NHG1B-690 EATON ELECTRIC Fuse-link, LV, 100 A, AC 690V, NH1, gL/gG, IEC, dual..

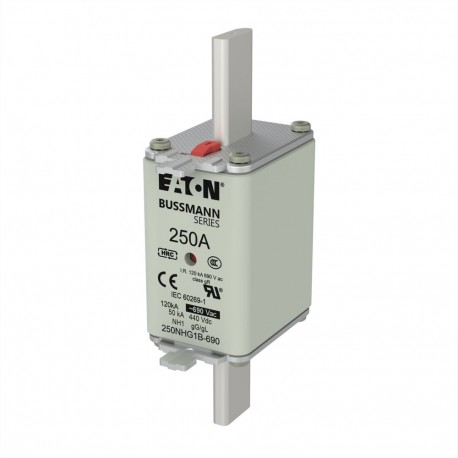

NH FUSE 250A 690V gG SIZE 1
250NHG1B690
250NHG1B-690
EATON - MOELLER
3 Pcs.
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Protection for industrial electrical installations is provided by this Eaton Moeller NH FUSE 250A 690V gG SIZE 1 fuse-link, designed to interrupt excessive fault currents safely. Low-voltage fuse-links of this type serve standard cable and equipment safeguarding roles in distribution panels and heavy-duty switchgear setups.
Final pricing, availability, and lead times are confirmed per enquiry through an RFQ.
- Fuse construction type according to IEC 60269 (EF015865): NH1
- Voltage type (EF000187): AC
- Rated current (EF000227): 250 A
- Rated voltage AC (EF007682): 690 V
- Rated switching capacity AC (EF017698): 120 kA
- Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
- Type of fuse status indicator (EF004473): Combination fuse status indicator
- Insulated metal gripping lugs (IMGL) (EF012538): No
- Power loss at rated current (EF012389): 22 W
More info
▲General specifications
RoHS Compliant
IEC 60269-2
DIN 43620
Electrical data
Product specification
Accessories
TD1-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
