> EATON - MOELLER > Bussmann Series Medium Voltage fuses and accessories > 24TXMEJ125

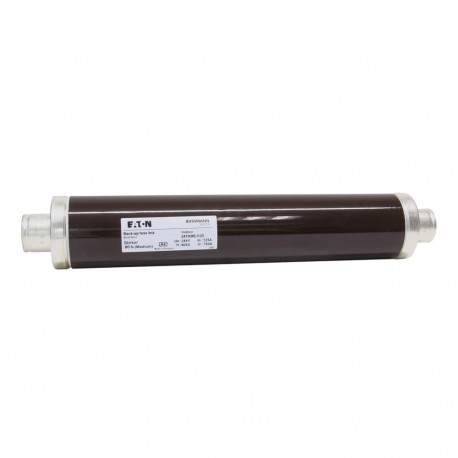

EATON - MOELLER 24KV 125AMP 3" DIN FUSE 24KV 125AMP 3" DIN FUSE 24TXMEJ125 EATON ELECTRIC Air fuse-link, medium voltage, 3 x 125A x 3, AC 12 kV, 76 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

24KV 125AMP 3" DIN FUSE 24TXMEJ125 EATON ELECTRIC Air fuse-link, medium voltage, 3 x 125A x 3, AC 12 kV, 76 ..

24KV 125AMP 3" DIN FUSE

24TXMEJ125

24TXMEJ125

EATON - MOELLER

1 Pcs.

Air fuse-link, medium voltage, 3 x 125A x 3, AC 12 kV, 76 x 359 mm, back-up, BS, with striker 24KV 125AMP 3" DIN FUSE Eaton Bussmann series medium voltage DIN fuse, 125 A, AC 24 kV, 3.5", 88 x 442 mm, backup, DIN, with striker Fuse, Fuse-link, medium voltage, 125 A, AC 24 kV, 3.5z, 88 x 442 mm, Back-up, DIN, with striker, transformer protection, indoor or outdoor use, DIN 43625, VDE 0670 Part 4, IEC 60282-1, Breaking Capacity 40 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage DIN fuse
Catalog Number
24TXMEJ125
EAN
5027590225816
UPC
051712200523
Product Length/Depth
442 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
5873 g
Compliances
DIN 43625
VDE 0670-4
IEC 60282-1
Certifications
UL
VDE

Product specifications

Type
Fuse
Special features
Back-up, Transformer protection, Indoor or outdoor use
Application
Amperage Rating
125 A
Fuse indicator
With Striker
Breaking capacity
40 kA
Installation technique
Air
Performance Cat According To IEC 60282-1
Back-up
Product application
Primary side transformer protection
Rated frequency - max
50 Hz
Rated frequency - min
50 Hz
Release characteristic
Other
Standard
DIN
Utilization category
Other
Voltage type
AC
With striker
Yes
Class
Class back-up
Barrels
1
Construction type
Bolt-on
Pre arc (I2T)
9.7 x 10000
Resistance
11 Ohms
Watt losses
340 W
Fuse diameter
76 mm
Color
Brown
Interrupt rating
40 kAIC
Construction size
88 x 442 mm
Mounting method
Clip-in
Packaging type
Standard
Quantity
1
Voltage rating
24 kV
Fuse type
TXMEJ

ETIM for 24TXMEJ125 Circuit breakers and fuses (EC003507)
Feature Name Feature Value
Rated current (EF000227) 125 A
Rated voltage (EF000228) 24 kV
Voltage type (EF000187) AC
Rated frequency (EF001663) 50 Hz
Breaking capacity (EF005617) 40 kA
Utilization category according to IEC 60269 (EF002572) Other
Application (EF000041) Primary side transformer protection
Length (EF001438) 442 mm
Diameter (EF000551) 76 mm
Performance category according to IEC 60282-1 (EF012539) Back-up
With striker (EF008175) Yes
Standard (EF009322) DIN
Release characteristic (EF000889) Other
Installation technique (EF001474) Air

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
