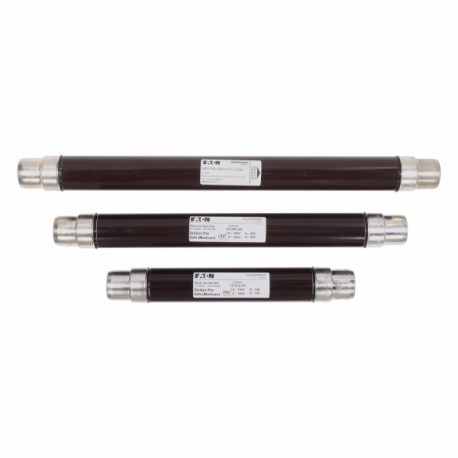

24FDMSJ6.3 24FDMSJ6-3 EATON ELECTRIC cartridge fuse, MT, 6.3 A, AC 24 kV, 2", 51 x 442 mm, Full range, to DI..
24FDMSJ6.3
24FDMSJ63
24FDMSJ6-3
EATON - MOELLER
3 Pcs.
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A full range Eaton Moeller 24FDMSJ6.3 cartridge fuse provides reliable overcurrent interruption on the primary side of medium-voltage distribution transformers. These protective components isolate abnormal fault conditions in industrial electrical systems to maintain network stability. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated current (EF000227): 6.3 A
- Rated voltage (EF000228): 24 kV
- Voltage type (EF000187): AC
- Rated frequency (EF001663): 50 Hz
- Breaking capacity (EF005617): 35.5 kA
- Application (EF000041): Primary side transformer protection
- Length (EF001438): 442 mm
- Diameter (EF000551): 51 mm
- Performance category according to IEC 60282-1 (EF012539): Full range
- With striker (EF008175): Yes
- Standard (EF009322): DIN
- Installation technique (EF001474): Air
More info
▲DIN 43625
IEC 60282-1
indoor or outdoor use
A3354710 Fuse clip
