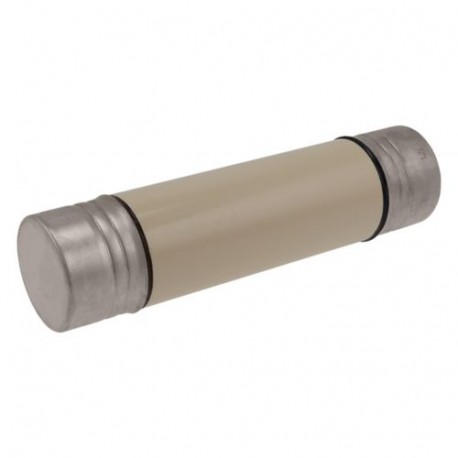

EATON - MOELLER 24KV 3A 1" VT FUSE 24KV 3A 1" VT FUSE 24OMGNU3 EATON ELECTRIC VT fuse-link, medium voltage, 3 A, AC 24 kV, 21 x 359 mm, back-up.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

24KV 3A 1" VT FUSE 24OMGNU3 EATON ELECTRIC VT fuse-link, medium voltage, 3 A, AC 24 kV, 21 x 359 mm, back-up..

24KV 3A 1" VT FUSE

24OMGNU3

EATON - MOELLER

12 Pcs.

VT fuse-link, medium voltage, 3 A, AC 24 kV, 21 x 359 mm, back-up, BS, style U tags 24KV 3A 1" VT FUSE VT fuse-link, 3 A, AC 24 kV, 1", 21 x 359 mm, back-up, BS Fuse, VT fuse-link, medium voltage, 3 A, AC 24 kV, 21 x 359 mm, back-up, BS, cylindrical, protection of primary side transformers, BS2692-1

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for instrumentation circuits, the Eaton Moeller 24KV 3A 1" VT FUSE operates as a specialized medium voltage VT fuse-link. It provides auxiliary transformer protection within oil-immersed switchgear assemblies, safeguarding potential transformers against electrical anomalies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 3 A
  • Rated voltage (EF000228): 24 kV
  • Voltage type (EF000187): AC
  • Application (EF000041): Auxiliary transformer protection
  • Length (EF001438): 359 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): No
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Oil

More info

▲
VT fuse-link, 3 A, AC 24 kV, 1", 21 x 359 mm, back-up, BS
Fuse, VT fuse-link, medium voltage, 3 A, AC 24 kV, 21 x 359 mm, back-up, BS, cylindrical, protection of primary side transformers, BS2692-1

Delivery program

Product range
Fuse
Basic function
VT fuse-link
Rated current [I]
3 A
Rated voltage
AC 24 kV
Construction size
1"
Size
21 x 359 mm
Utilization category
back-up
usable for size/applications
protection of primary side transformers
Standard/Approval
BS
Shape
cylindrical
Standards/Regulations
BS2692-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
3 A
Rated voltage
24 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
40 kA
Utilization category
Other
Application
Auxiliary transformer protection
Length
359 mm
Diameter
25.4 mm
Performance category according to IEC 60282-1
Back-up
With striker
No
Standard
British Standard
Release characteristic
Other
Installation technique
Oil

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
