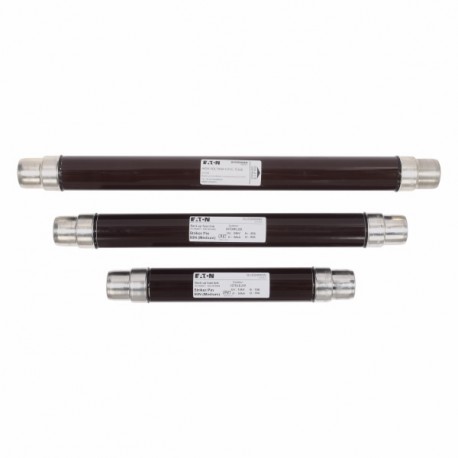

EATON - MOELLER 24FDMSJ31.5 24FDMSJ31.5 24FDMSJ31-5 EATON ELECTRIC Fuse-link, medium voltage, 31.5 A, AC 24 kV, 2", 51 x 442 mm, full-ra.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

24FDMSJ31.5 24FDMSJ31-5 EATON ELECTRIC Fuse-link, medium voltage, 31.5 A, AC 24 kV, 2", 51 x 442 mm, full-ra..

24FDMSJ31.5

24FDMSJ315

24FDMSJ31-5

EATON - MOELLER

3 Pcs.

24KV 31.5Amp 2" DIN Full Range Fuse 24FDMSJ31.5 - Fuse-link, medium voltage, 31.5 A, AC 24 kV, 2", 51 x 442 mm, full-range, DIN, with striker Fuse, Fuse-link, medium voltage, 31.5 A, AC 24 kV, 2z, 51 x 442 mm, Full range, DIN, with striker, transformer protection, indoor use, DIN 43625, VDE 0670 Part 4, VDE 0670 Part 402, IEC 60282-1, Breaking Capacity 35.5 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller 24FDMSJ31.5 fuse-link, medium voltage, offers full-range protection for primary side transformer systems operating at elevated voltage levels. Full-range medium-voltage fuses safely clear both low overloads and high fault currents.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 31.5 A
  • Rated voltage (EF000228): 24 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 35.5 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 442 mm
  • Diameter (EF000551): 51 mm
  • Performance category according to IEC 60282-1 (EF012539): Full range
  • With striker (EF008175): Yes
  • Standard (EF009322): DIN
  • Installation technique (EF001474): Air

More info

▲
Fuse-link, medium voltage, 31.5 A, AC 24 kV, 2", 51 x 442 mm, full-range, DIN, with striker
Fuse, Fuse-link, medium voltage, 31.5 A, AC 24 kV, 2", 51 x 442 mm, Full range, DIN, with striker, transformer protection, indoor use, DIN 43625, VDE 0670 Part 4, VDE 0670 Part 402, IEC 60282-1, Breaking Capacity 35.5 kA

General specifications
Product name
Eaton Bussmann series medium voltage DIN fuse
Part no.
24FDMSJ31.5
EAN
5027590469005
Product Length/Depth
442 millimetre
Product height
53.5 millimetre
Product width
51 millimetre
Product weight
2200 gram
Compliances
IEC 60282-1
DIN 43625
VDE 0670-4
Certifications
VDE
Product Tradename
None
Product Type
Medium voltage DIN fuse
Product Sub Type
None
Electrical data
Amperage Rating
31.5 A
Voltage rating
24 kV
Breaking capacity
35.5 kA
Performance Cat According To IEC 60282-1
Full-range
Rated frequency - min
50 Hz
Class
Class full-range
Resistance
48.6 Ohms
Product specifications
Application
transformer protection
indoor or outdoor use
Fuse indicator
With Striker
Fuse size
51 x 442 mm
Standard
DIN
Mounting method
Clip-in
Compatible fuse clip
Used with
270303 Fuse clip
A3354710 Fuse clip

Technical data ETIM 8.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse systems / Safety fuse systems (unspecified) ([email protected] [BAB265011])
Rated current
31.5 A
Rated voltage
24 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
35.5 kA
Utilization category
Other
Application
Primary side transformer protection
Length
442 mm
Diameter
51 mm
Performance category according to IEC 60282-1
Full-range
With striker
Yes
Standard
DIN
Release characteristic
Other
Installation technique
Air

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
