EATON - MOELLER NH FUSE 224A 500V GG/GL SIZE 1 NH FUSE 224A 500V GG/GL SIZE 1 224NHG1B EATON ELECTRIC Fuse-link, LV, 224 A, AC 500 V, NH1, gL/gG, IEC, dual.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 224A 500V GG/GL SIZE 1 224NHG1B EATON ELECTRIC Fuse-link, LV, 224 A, AC 500 V, NH1, gL/gG, IEC, dual..

NH FUSE 224A 500V GG/GL SIZE 1

224NHG1B

224NHG1B

EATON - MOELLER

3 Pcs.

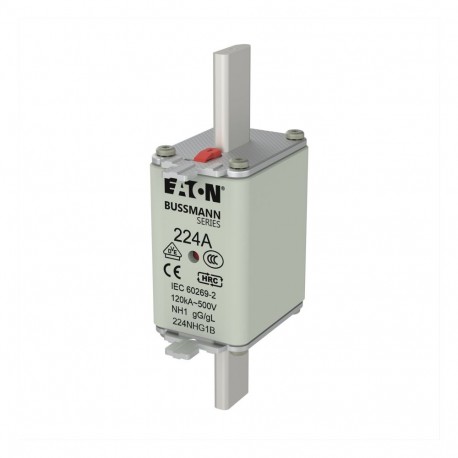

Fuse-link, LV, 224 A, AC 500 V, NH1, gL/gG, IEC, dual indicator, live gripping lugs NH FUSE 224A 500V GG/GL SIZE 1 Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 224A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a critical safety device in industrial environments, the NH FUSE 224A 500V GG/GL SIZE 1 224NHG1B EATON ELECTRIC Fuse-link, LV, 224 A, AC 500 V, NH1, gL/gG, IEC, dual.. provides dependable cable and equipment protection against overloads. These standard low-voltage cartridge fuses are routinely installed in switchboards and distribution boxes to maintain safe electrical operation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH1
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 224 A
  • Rated voltage AC (EF007682): 500 V
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
224NHG1B
EAN
5027590468541
UPC
051712626040
Product Length/Depth
135 mm
Product Height
63 mm
Product Width
40 mm
Product Weight
407.3333333 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
224 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH1
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
SD1-D Single pole NH Fuse base
TD1-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
