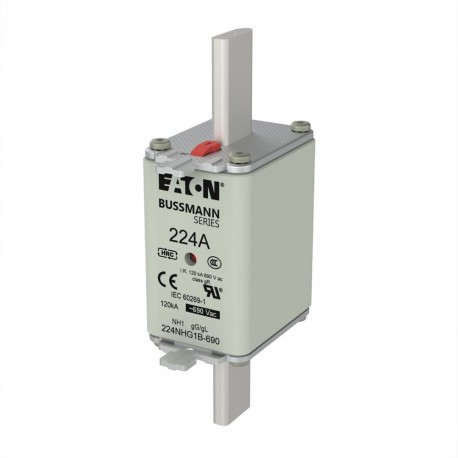

224NHG1B-690 EATON ELECTRIC Fuse-link, LV, 100 A, AC 690V, NH1, gL/gG, IEC, dual indicator, insulated grippi..
224NHG1B-690
224NHG1B690
EATON - MOELLER
3 Pcs.
NH FUSE 224A 690V gG SIZE 1 DUAL IND
Fuse-link, LV, 224 A, AC 690 V, NH1, gL/gG, IEC, dual indicator, live gripping lugs
Fuse, fuse-link, low voltage, 224 A, AC 690 V, NH1, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
224NHG1B-690
Model Code
NH FUSE 224A 690V gG SIZE 1 DUAL IND
EAN
5027590468589
Product Length/Depth
135 mm
Product Height
63 mm
Product Width
40 mm
Product Weight
434 g
Compliances
CE Marked
RoHS Compliant
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620
IEC 60269-2
DIN 43620
Electrical data
Amperage Rating
224 A
Voltage rating
690 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Product specification
Fuse size
NH2
Insulated metal gripping lugs (IMGL)
No
Accessories
Suitable for
SD2-D Single pole NH Fuse base
TD2-D Tripe pole NH Fuse base
Microswitch 170H0235
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
TD2-D Tripe pole NH Fuse base
Microswitch 170H0235
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
| Feature Name | Feature Value |
|---|---|
| Fuse construction type according to IEC 60269 (EF015865) | NH1 |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 224 A |
| Rated voltage AC (EF007682) | 690 V |
| Rated switching capacity AC (EF017698) | 120 kA |
| Utilization category according to IEC 60269 (EF002572) | gG (cable protection/equipment protection) |
| Type of fuse status indicator (EF004473) | Combination fuse status indicator |
| Insulated metal gripping lugs (IMGL) (EF012538) | No |
| Power loss at rated current (EF012389) | 19 W |
