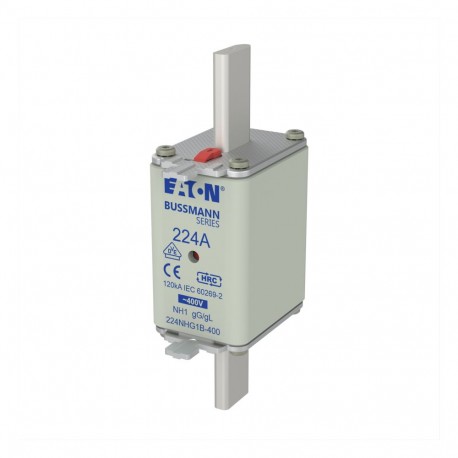

NH FUSE 224A 400V GG/GL SIZE 1 224NHG1B-400 EATON ELECTRIC Fuse-link, LV, 224 A, AC 400 V, NH02, gL/gG, IEC,..
NH FUSE 224A 400V GG/GL SIZE 1
224NHG1B400
224NHG1B-400
EATON - MOELLER
3 Pcs.
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Industrial distribution networks rely on components like the Eaton Moeller NH FUSE 224A 400V GG/GL SIZE 1 fuse-link to interrupt short-circuit currents and protect wiring. These low-voltage protective elements are deployed broadly in commercial and manufacturing electrical systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Fuse construction type according to IEC 60269 (EF015865): NH1
- Voltage type (EF000187): AC
- Rated current (EF000227): 224 A
- Rated voltage AC (EF007682): 400 V
- Rated switching capacity AC (EF017698): 120 kA
- Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
- Type of fuse status indicator (EF004473): Combination fuse status indicator
- Insulated metal gripping lugs (IMGL) (EF012538): No
- Power loss at rated current (EF012389): 12 W
More info
▲General specifications
RoHS Compliant
CE Marked
IEC 60269-2
DIN 43620
