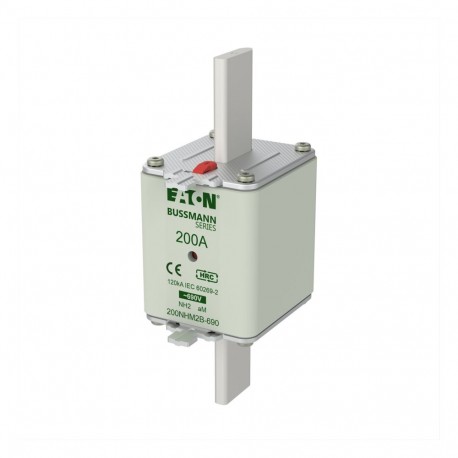

NH FUSE 200A 690V aM SIZE 2 200NHM2B-690 EATON ELECTRIC cartridge fuse, BT 200 a, AC 690 V, NH2, a.m., IEC, ..
NH FUSE 200A 690V aM SIZE 2
200NHM2B690
200NHM2B-690
EATON - MOELLER
3 Pcs.
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller NH FUSE 200A 690V aM SIZE 2 is a switchgear protection cartridge fuse designed specifically to safeguard motor circuits and associated switching devices against short-circuit currents. This specialized category ensures selective protection while allowing for standard motor starting currents. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Fuse construction type according to IEC 60269 (EF015865): NH2
- Voltage type (EF000187): AC
- Rated current (EF000227): 200 A
- Rated voltage AC (EF007682): 690 V
- Rated switching capacity AC (EF017698): 120 kA
- Utilization category according to IEC 60269 (EF002572): aM (switchgear protection)
- Type of fuse status indicator (EF004473): Combination fuse status indicator
- Insulated metal gripping lugs (IMGL) (EF012538): No
- Power loss at rated current (EF012389): 14 W
More info
▲General specifications
CE Marked
IEC 60269-2
DIN 43620
Electrical data
Product specification
Accessories
TD2-D Tripe pole NH Fuse base
Microswitch 170H0235
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
