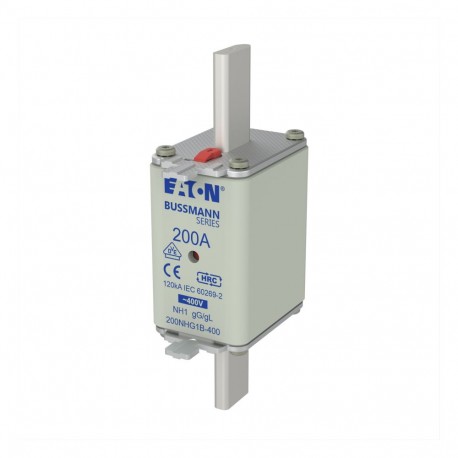

EATON - MOELLER NH FUSE 200A 400V GG/GL SIZE 1 NH FUSE 200A 400V GG/GL SIZE 1 200NHG1B-400 EATON ELECTRIC Fuse-link, LV, 200 A, AC 400 V, NH02, gL/gG, IEC,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 200A 400V GG/GL SIZE 1 200NHG1B-400 EATON ELECTRIC Fuse-link, LV, 200 A, AC 400 V, NH02, gL/gG, IEC,..

NH FUSE 200A 400V GG/GL SIZE 1

200NHG1B400

200NHG1B-400

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 200 A, AC 400 V, NH02, gL/gG, IEC, dual indicator, live gripping lugs 200 A,AC 400 V, Fuse Link with live lugs Fuse, fuse-link, low voltage, 200 A, AC 400 V, NH1, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Protect high-amperage industrial feeders and machinery utilizing this Eaton Moeller NH FUSE 200A 400V GG/GL SIZE 1. High-rupturing capacity fuses are fundamental building blocks in electrical switchboards for mitigating fault currents. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH1
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 200 A
  • Rated voltage AC (EF007682): 400 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No
  • Power loss at rated current (EF012389): 12 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
200NHG1B-400
EAN
5027590467223
Product Length/Depth
135 mm
Product Height
63 mm
Product Width
40 mm
Product Weight
410 g
Compliances
CE
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
200 A
Voltage rating
400 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL

Product specification

Fuse size
NH2
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
SD2-D Single pole NH Fuse base
TD2-D Tripe pole NH Fuse base
Microswitch 170H0235
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
