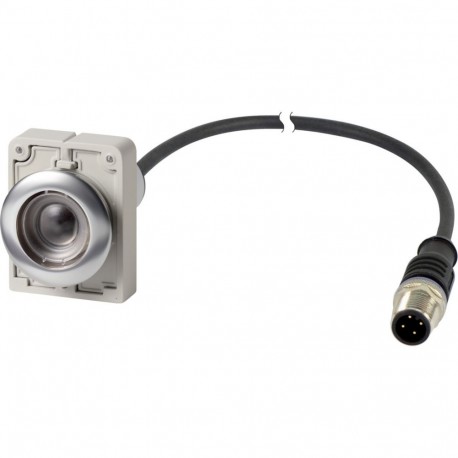

EATON - MOELLER 186000 186000 EATON ELECTRIC Compact flush button. 30 mm. Interlocking. Without a license plate. 2 NC. M12 Connecto.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

186000 EATON ELECTRIC Compact flush button. 30 mm. Interlocking. Without a license plate. 2 NC. M12 Connecto..

186000

186000

EATON - MOELLER

1 Pcs.

Compact flush button. 30 mm. Interlocking. Without a license plate. 2 NC. M12 Connector 1m Pushbutton, RMQ compact solution, Complete unit, Design: Flat, maintained, Connection type: Cable (black) with M12A plug, 4 pole, Cable Length: 1 m, button plate: Without button plate, Degree of Protection: IP66, IP67, IP69K (front), IP65 (on rear), Metal bezel, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, N/O = Normally open: 1 N/O, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7, Minimum force for positive opening: N 20, Positive opening (ZW): yes, Standards: IEC/EN 60947-5-1, VDE 0660

Automation > Push button, complete
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller 186000 Compact flush button. 30 mm. Interlocking. Without a license plate. 2 NC. M12 Connecto.. is an industrial control switch configured for secure panel installation and machine automation control. Interlocking pushbuttons maintain their mechanical or electrical state until deliberately released.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of command positions (EF001372): 1
  • Type of button (EF001546): Flat
  • Colour button (EF000190): Without button plate
  • Transparent (EF006243): No
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 30.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Suitable for lighting (EF001142): No
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • Supply voltage lamp (EF006522): 0 V
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 1
  • Number of contacts as change-over contact (EF008257): 0
  • With front ring (EF006014): Yes
