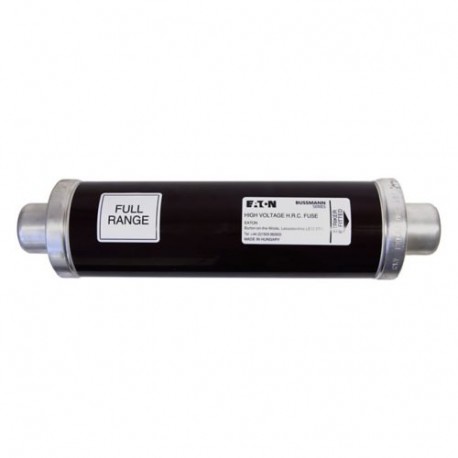

17.5KV 71AMP 3" DIN FUSE 17.5AILSJ71 17-5AILSJ71 EATON ELECTRIC Air fuse-link, medium voltage, 71 A, AC 12 k..
17.5KV 71AMP 3" DIN FUSE
175AILSJ71
17-5AILSJ71
EATON - MOELLER
3 Pcs.
Air fuse-link, medium voltage, 71 A, AC 12 kV, 76 x 359 mm, back-up, BS, with striker
17.5KV 71AMP 3" DIN FUSE
17.5KV 71AMP 3" DIN FUSE - Fuse-link, medium voltage, 71 A, AC 17.5 kV, 20 kA, 3", 76 x 292 mm, back-up, DIN, with striker
Fuse, Fuse-link, medium voltage, 71 A, AC 17.5 kV, 3z, 76 x 292 mm, Back-up, DIN, with striker, transformer protection, indoor use, DIN 43625, VDE 0670 Part 4, VDE 0670 Part 402, IEC 60282-1, Breaking Capacity 20 kA
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series medium voltage DIN fuse
Catalog Number
17.5AILSJ71
EAN
5027590437974
Product Length/Depth
326 mm
Product Height
76 mm
Product Width
76 mm
Product Weight
3.3 kg
Compliances
DIN 43625
VDE 0670-4
VDE 0670-4
Certifications
IEC60282-1
Electrical data
Amperage Rating
71 A
Voltage rating
17.5 kV
Voltage type
AC
Breaking capacity
20 kA
Performance Cat According To IEC 60282-1
Back-up
Rated frequency - min
50 Hz
Class
Class back-up
Product specifications
Fuse indicator
With Striker
Construction size
76 x 292 mm
Standard
DIN
Standard
DIN
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 71 A |
| Rated voltage (EF000228) | 17.5 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Breaking capacity (EF005617) | 20 kA |
| Utilization category according to IEC 60269 (EF002572) | Other |
| Application (EF000041) | Primary side transformer protection |
| Length (EF001438) | 326 mm |
| Diameter (EF000551) | 76 mm |
| Performance category according to IEC 60282-1 (EF012539) | Back-up |
| With striker (EF008175) | Yes |
| Standard (EF009322) | DIN |
| Release characteristic (EF000889) | Other |
| Installation technique (EF001474) | Air |
