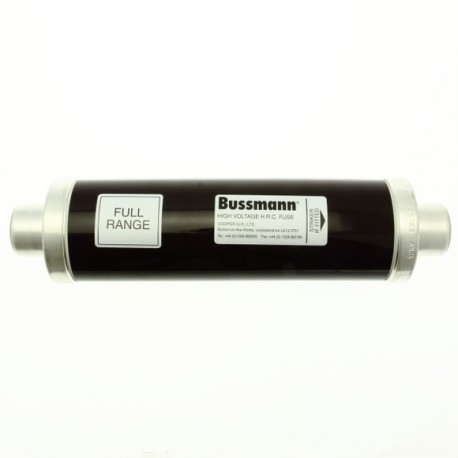

EATON - MOELLER 17.5KV 50AMP 3" DIN FUSE 17.5KV 50AMP 3" DIN FUSE 17-5TFLSJ50 EATON ELECTRIC Air fuse-link, medium voltage, 50 A, AC 17.5 kV, 3", 76 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

17.5KV 50AMP 3" DIN FUSE 17-5TFLSJ50 EATON ELECTRIC Air fuse-link, medium voltage, 50 A, AC 17.5 kV, 3", 76 ..

17.5KV 50AMP 3" DIN FUSE

175TFLSJ50

EATON - MOELLER

3 Pcs.

Air fuse-link, medium voltage, 50 A, AC 17.5 kV, 3", 76 x 292 mm, back-up, DIN, with striker fuse cartridge, MT, 50 A, AC 17.5 kV, 3", 76 x 292 mm, Back-up, DIN, with striker Fuse, Fuse-link, medium voltage, 50 A, AC 17.5 kV, 3z, 76 x 292 mm, Back-up, DIN, with striker, transformer protection, indoor use, DIN 43625, VDE 0670 Part 4, VDE 0670 Part 402, IEC 60282-1, Breaking Capacity 35.5 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Protection for medium voltage distribution is handled by the Eaton Moeller 17.5KV 50AMP 3" DIN FUSE (17-5TFLSJ50), an air fuse-link designed to isolate electrical faults swiftly. These components serve as vital safety barriers in power installations, preventing equipment failure by clearing destructive overcurrent conditions safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 50 A
  • Rated voltage (EF000228): 17.5 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 35.5 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 360 mm
  • Diameter (EF000551): 76 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): DIN
  • Installation technique (EF001474): Air

More info

▲
Fuse-link, medium voltage, 50 A, AC 17.5 kV, 3", 76 x 292 mm, back-up, DIN, with striker
Fuse, Fuse-link, medium voltage, 50 A, AC 17.5 kV, 3", 76 x 292 mm, Back-up, DIN, with striker, transformer protection, indoor use, DIN 43625, VDE 0670 Part 4, VDE 0670 Part 402, IEC 60282-1, Breaking Capacity 35.5 kA

Delivery program

Product range
Fuse
Basic function
Fuse-link
Field of application
medium voltage
Rated current [I]
50 A
Rated voltage
AC 17.5 kV
Construction size
3"
Size
76 x 292 mm
Utilization category
back-up
Status indicator
with striker
Breaking Capacity
35.5 kA
usable for size/applications
transformer protection
indoor use
Standard/Approval
DIN
Standards/Regulations
DIN 43625
VDE 0670-4
VDE 0670-402
IEC 60282-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
50 A
Rated voltage
17.5 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
35.5 kA
Utilization category
Other
Application
Primary side transformer protection
Length
292 mm
Diameter
76 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
DIN
Release characteristic
Other
Installation technique
Air
