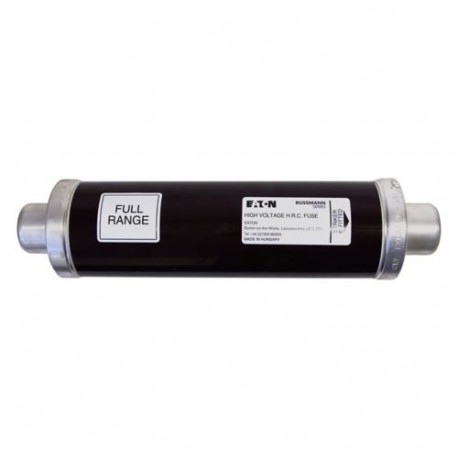

EATON - MOELLER 17.5KV 40AMP 3" DIN FUSE 17.5KV 40AMP 3" DIN FUSE 17.5AILSJ40 17-5AILSJ40 EATON ELECTRIC cartridge fuse, MT, 40 A, AC 17.5 kV, 3", 76.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

17.5KV 40AMP 3" DIN FUSE 17.5AILSJ40 17-5AILSJ40 EATON ELECTRIC cartridge fuse, MT, 40 A, AC 17.5 kV, 3", 76..

17.5KV 40AMP 3" DIN FUSE

175AILSJ40

17-5AILSJ40

EATON - MOELLER

3 Pcs.

cartridge fuse, MT, 40 A, AC 17.5 kV, 3", 76 x 292 mm, Back-up, DIN, with striker 17.5KV 40AMP 3" DIN FUSE 17.5KV 40AMP 3" DIN FUSE - Fuse-link, medium voltage, 40 A, AC 17.5 kV, 25 kA, 3", 76 x 292 mm, back-up, DIN, with striker Fuse, Fuse-link, medium voltage, 40 A, AC 17.5 kV, 3z, 76 x 292 mm, Back-up, DIN, with striker, transformer protection, indoor use, DIN 43625, VDE 0670 Part 4, VDE 0670 Part 402, IEC 60282-1, Breaking Capacity 25 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for medium voltage distribution grids, the Eaton Moeller 17.5KV 40AMP 3" DIN FUSE (17.5AILSJ40) serves as a cartridge fuse for primary transformer protection. These safety elements isolate grid faults rapidly to protect expensive electrical hardware from destruction. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 40 A
  • Rated voltage (EF000228): 17.5 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 20 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 442 mm
  • Diameter (EF000551): 76 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): DIN
  • Installation technique (EF001474): Air

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage DIN fuse
Catalog Number
17.5AILSJ40
EAN
5027590437943
Product Length/Depth
442 mm
Product Height
76 mm
Product Width
76 mm
Product Weight
4500 g
Compliances
DIN 43625
VDE 0670-4
IEC 60282-1
Certifications
IEC60282-1

Electrical data

Amperage Rating
40 A
Voltage rating
17.5 kV
Voltage type
AC
Breaking capacity
20 kA
Performance Cat According To IEC 60282-1
Back-up
Rated frequency - min
50 Hz
Class
Class back-up
Resistance
7.33 Ohms
Watt losses
102 W

Product specifications

Fuse indicator
With Striker
Construction size
76 x 292 mm
Standard
DIN
Standard
DIN
Mounting method
Clip-in

Compatible fuse clip

Used with
270303 Fuse clip
A3354730 Fuse clip
