View larger
Images are for illustrative purposes only. Please refer to data sheet for details

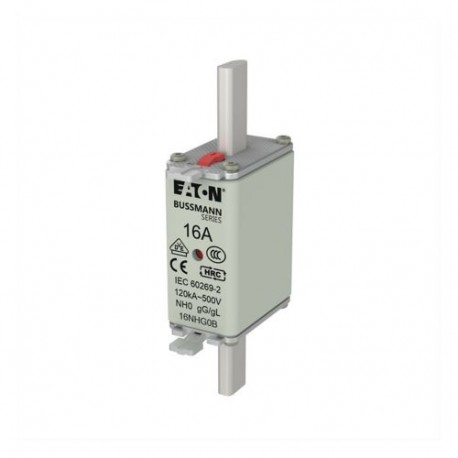

NH FUSE 16A 500V GG/GL SIZE 0 16NHG0B EATON ELECTRIC cartridge fuse, BT 16 a, AC 500 V, NH0, gL/gG, IEC, ind..
NH FUSE 16A 500V GG/GL SIZE 0
16NHG0B
16NHG0B
EATON - MOELLER
3 Pcs.
cartridge fuse, BT 16 a, AC 500 V, NH0, gL/gG, IEC, indicator double, metal terminals
NH FUSE 16A 500V GG/GL SIZE 0
Eaton Bussmann series low voltage NH Fuse, 500V, 16A, 120 kAIC, Combination fuse status indicator, fuse, Class C gL/gG
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
16NHG0B
Model Code
NH FUSE 16A 500V GG/GL SIZE 0
EAN
5027590437790
UPC
051712232425
Product Length/Depth
125 mm
Product Height
58 mm
Product Width
30 mm
Product Weight
299.3333333 g
Compliances
RoHS Compliant
CE Marked
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620
IEC 60269-2
DIN 43620
Electrical data
Amperage Rating
16 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz
Product specification
Fuse size
NH3
Insulated metal gripping lugs (IMGL)
No
Accessories
Suitable for
SD3-D Single pole NH Fuse base
TD3-D Tripe pole NH Fuse base
Microswitch 170H0235
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
TD3-D Tripe pole NH Fuse base
Microswitch 170H0235
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
| Feature Name | Feature Value |
|---|---|
| Fuse construction type according to IEC 60269 (EF015865) | NH0 |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 16 A |
| Rated voltage AC (EF007682) | 500 V |
| Utilization category according to IEC 60269 (EF002572) | gG (cable protection/equipment protection) |
| Type of fuse status indicator (EF004473) | Combination fuse status indicator |
| Insulated metal gripping lugs (IMGL) (EF012538) | No |
